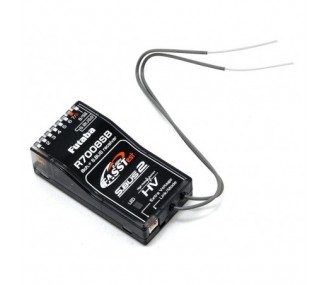

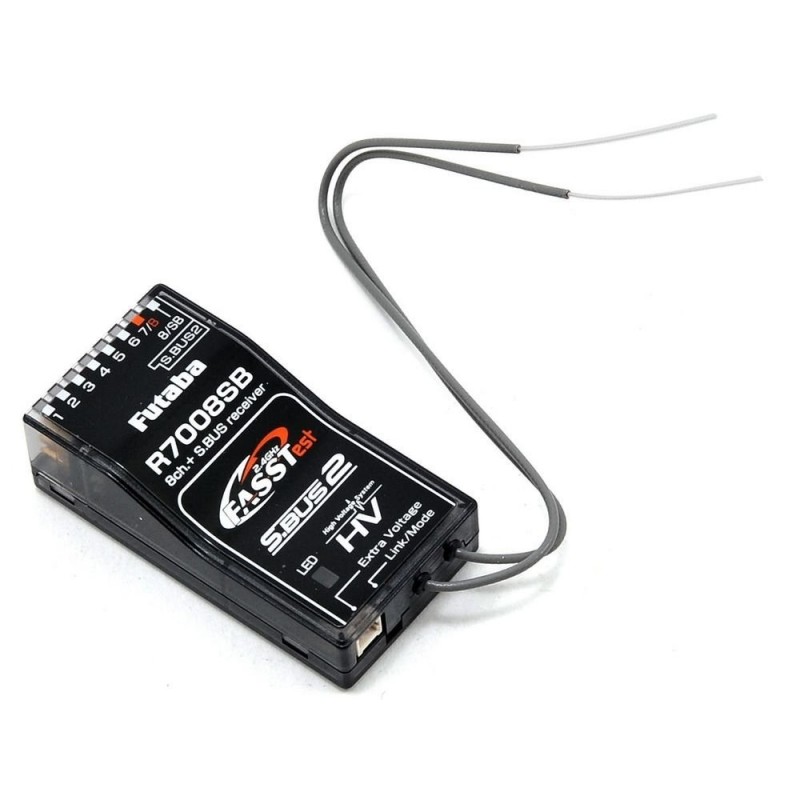

Futaba R7008SB FASSTest Receiver
  • Futaba R7008SB FASSTest Receiver
  • Futaba R7008SB FASSTest Receiver
  • Futaba R7008SB FASSTest Receiver

Futaba R7008SB FASSTest Receiver

FASSTTEST Bi directional 2.4 receiver Compatible with the new T18 radio.its SBUS2 system allows to connect the telemetry probes.this receiver can be used with 8 conventional servos, for the rest it is necessary to use SBUS servos.only compatible with FASSTest transmitters (18MZ, 14SG, FX32)
Read more
€125.90
Quantity :
Out-of-Stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

FASSTest Receiver Compatibility

General characteristics

  • Integrated telemetry transmitter for transmitting up to 32 telemetry data to the ground with a range of over 1000m.
  • 8 PWM channels for connecting conventional servos.
  • Possibility to operate two receivers in parallel allowing to double the number of channels (up to 16 channels), but also the number of telemetry data (64).
  • Channel 8 can be used in S-BUS mode allowing to connect up to 18 S-BUS servos.

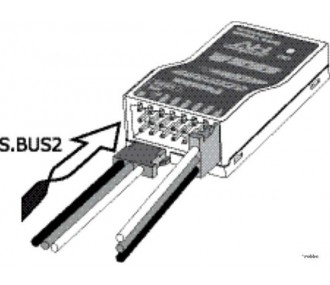

  • S-BUS plug 2 to connect probes (the data collected by these probes will be transmitted to the ground via the FASSTest receiver which will display them on a screen or in the form of audible announcements

Technical specifications

  • Frequency band : 2.4 - 2.4835 Ghz
  • Number of channels : 18
  • Transmission system: FASSTest

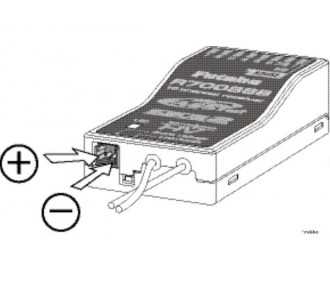

  • Supply voltage: 3.7 - 7.4 V (4-5NiMh, 2LiFe, 1-2LiPo)
  • Consumption: 50mA
  • Dimensions: 47x25x14.3mm
  • Antenna length: 14cm
  • Mass: approx. 13g
