Aircraft Kavan Pilatus PC-6 Porter 1.5m PNP - Red

Ref: 210-KAV02.8090

Add to my favorites Remove from my favorites

Near-ready-to-fly semi-realistic model (1500 mm wingspan) of a Swiss STOL utility aircraft. Made of carbon-reinforced expanded polyolefin (EPO); KAVAN C3548-750 brushless motor, 10x6" three-blade propeller, R-40SB ESC and 6 micro-servos installed. Full house" aileron, flap, elevator, rudder and throttle control; steerable water rudder/tail wheel, LED lights. For 4S LiPo 2600-3300mAh battery (at least 30C).

€308.25

Quantity :

Stock available

Paiement sécurisé
Livraison 24/48h
Paiement 3X

Cheaper elsewhere?

The fully carbon-reinforced EPO foam fuselage comes with the KAVAN C3548-750 brushless motor, a 10x6" three-blade propeller and a KAVAN R-40SB ESC with a powerful SBEC switchable stabilizer needed to power the 6 servos on board. The battery compartment (under a removable hatch in the nose) offers plenty of space for your flight pack.

The two-piece EPO wing is reinforced with carbon spars and assembled with carbon tubing. The wing is bolted to the fuselage. Ailerons and flaps are controlled by two pairs of servos installed in the wing and driven by short-wire pushrods; LED position and landing lights are also installed. Easy-to-install carbon struts are attached with a pair of metal clips.

The tailplane is made of EPO foam. The elevator servo is installed in the fuselage, the rudder servo in the aileron.

Specifications :

Wing span [mm] 1500
Length [mm] 1112
Wing area [dm 2 ] 27.9
Weight [g] 1650 - 1700
Controlled functions S,V,K(2),M,F(2)
Construction difficulty S0,S1
Difficulty of operation

Floats are optional below.

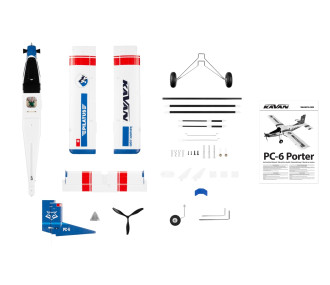

Included in the kit:

EPO fuselage with brushless motor, 40A ESC, 10x6" three-blade propeller and 2 servos installed, EPO wing with 4 servos and LED lights installed, EPO horizontal tail, landing gear and instruction manual.
