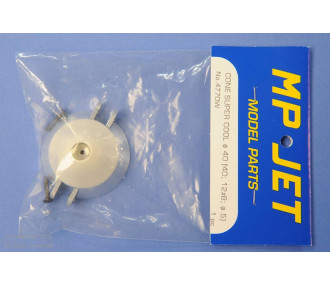

SUPER COOL CONE FOR REPLIABLE HEL Ø40/5.0 mm
070-1314770W
TURBO precision cone for folding propeller with axial motor cooling system
[%IMAGE2%]
[%IMAGE3%]
- High-quality aluminum and plastic cone for electric gliders.
- Die-cast cone ogive in resistant plastic.
- Cone flange machined on Cnc machines.
- Aluminum propeller hub with blade feet secured by pin and snap ring.
- Secured to the motor shaft by an aluminum clamp system ensuring high hold and perfect centering.
Technical specifications:
- Cone diameter (A): Ø40 mm
- Cone length (B): 24 mm
- Blade center distance (C): 40 mm
- Blade carrier width (D): 12 mm
- Blade-holder thickness (E): 8 mm
- Blade root thickness (F): 6 mm
- Blade axis diameter (G): Ø2 mm
- Blade axis length (H): 10 mm
- For motor shaft (J): Ø5.0 mm
[%IMAGE1%]
-
