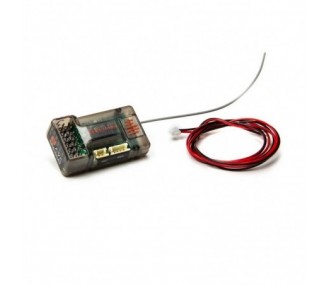

Spektrum 6 Channel SR6100AT DSMR/DSM2 Receiver

Built around frequency agile DSMR technology, the Spektrum SR6100AT 6-channel receiver provides exceptional range and response, especially in locations where multiple 2.4 GHz systems are in use at the same time. The SR6100AT features Spektrum's patented Active Vehicle Control (AVC) technology and full range telemetry capabilities. AVC technology reads your command inputs, detects your car's direction, and makes up to 180 steering and power adjustments per second to keep you on track without holding back. The SR6100AT leverages the telemetry functions of Spektrum Smart Technology electronic speed controllers and conventional temperature, speed and voltage sensors via the X-Bus adapter.

DSMR / DSM2 6 channel receiver
Full range telemetry capabilities with Spektrum Firma Smart ESC
Ideal for models that will benefit from AVC technology and need additional channels for lights, shift servos and other accessories.
Steering priority gives the driver full control of the vehicle
Fully adjustable: fine-tune the desired degree of stability or turn it off if desired.

Water resistant "Realkote" coating to protect electronics
Voltage sensor data port, voltage sensor included
Works with any RC car, truck or buggy
Compatible with all DSMR/DSM2 transmitters

The SR6100AT receiver's throttle port includes a smart throttle. This port automatically detects when a Smart throttle is connected and the throttle port begins to operate in Smart throttle mode. When combined with Spektrum Smart LiPo batteries with IC series connectors, they can transmit data from Spektrum Smart compatible batteries. The SR6100AT also has two built-in telemetry ports that are compatible with telemetry-enabled DSMR transmitters. If a standard ESC or servo is connected to the throttle port of the SR6100AT receiver, the throttle port will function normally as any conventional receiver. AVC Technology
With the SR6100AT, the driver gets stability control for any vehicle in his collection! You can have AVC™ (Active Vehicle Control) technology stability control in any vehicle simply by adding the SR6100AT receiver and linking it to an AVC compatible transmitter. AVC technology creates a more enjoyable driving experience by managing the driving characteristics and attitude of the vehicle. This translates into better control for you and a more manageable vehicle in all driving environments.

Features

Antenna length: 4.7 "(120 mm)
Band: 2.4 GHz
Link method: Link button
Channels: 6
Data port: No
Failsafe: Yes
Flight log compatible: Yes
Governor: No
Resolution: 1024
Rev Limiter: No
Telemetry: compatible
Type: AVC DSMR / DSM2 6 channel telemetry receiver
Water resistant: Yes

Technical specifications

Length 42.4 (mm)
Width 23.9 (mm)
Height 15.1 (mm)
Weight 10 (g)
Frequency 2.4Ghz
Number of channels 6
