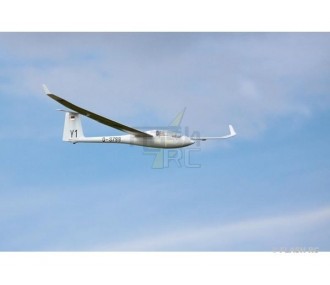

Discus 2a DE LUXE approx.3.75m ARF Topmodel CZ

Technical specifications

* Details in pictures

* Contents of the De Luxe version

Retractable landing gear with flaps (installed)

Closed gear door	Tail wheel (installed)

Towing hook installed in the nose

Canopy glued on its bucket	Opening/closing system

Wires installed in the wings, as well as the controls	Wires in the vertical stabilizer

Wing sockets installed at the fuselage karmans	Model cockpit (seat and instrument panel)

Decorations (registrations, flag ...) are installed on the fuselage and wings

* Specifications

• Wingspan : 3750mm
• Length : 1610mm
• Weight : 4.7 - 5.1 Kg
• Wing area : 64.8dm²
• Wing loading : 72.5 - 78.7 g/dm²
• Wing profile : HQ 3/14-13-12
• RC functions : elevator, fin, ailerons, speedbrakes, retractable gear, tow hook

Required components

• 2x micro servos HS82MG (ailerons)
• 1x micro servo HS85BB (elevator)
• 1x standard servo HS485HB (rudder)
• 1x standard servo HS645MG (tow hook)
• 1x standard servo HS635HB (retractable gear)
• 2x micro servo ep.9mm (airbrakes)
• 1x receiver battery NiMh 4.8V to 6.0V or LiFe 6.6V
• 1x charger
• 1x radio control/receiver set 6 channels or more

Contents of the kit

• White gel-coated fiberglass fuselage
• Elevator with hinged flap
• Elevator servo plate installed in the fin
• VTP flap installed
• Polystyrene wings with samba form and Oracover canvas with AF
• Aileron flaps installed
• Winglets
• Canopy glued on the bucket
• Retracting gear
• Wing key
• Decorations installed
• Small accessories
• Assembly plan (downloadable above)
