KIT version, with motor but without electronics (servos, esc, gyro).
The T-REX 650X ALIGN features a unique chassis design, with a narrow upper frame, and a wide lower frame leaving more room for the battery.
This design allows for an incredibly strong chassis structure, ease of repair and a wide variety of battery options.
Typical LiPo battery choices are 6s 22.2V 5000-6000mAh (Intermediate Flight), or 12s (2x 6s 22.2V) 3300-3500mAh (3D Flight).
The 650X incorporates many other concepts such as an updated quick release battery tray system, bright colors for the canopy and fin, and magnetic blade mounts.
The T-REX 650 is the stability of a 700 and the agility of a 600!
Features at a glance:

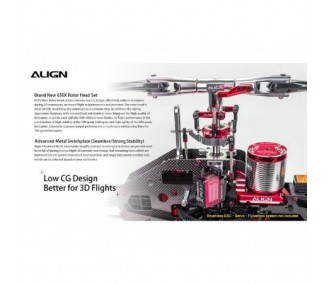

* 650X rotor head with low CG
* State of the art aluminum swashplate
* Accepts rotor blades from 600 to 650mm
* 800MX 440KV motor
* DS820M and DS825M HT brushless servos
* RCE-BL130A Brushless ESC
Technical specifications
- Length: 1620mm
- Height: 356mm
- Width: 196mm
- Main blade length: 650mm
- Main rotor diameter: 1455mm
- Anti-torque rotor diameter: 280mm
- Motor pinion: 16 teeth

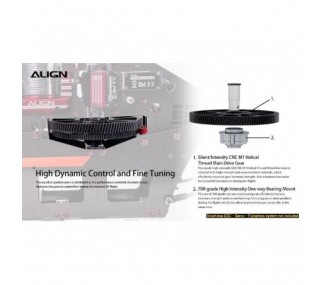

- Main reduction gear: 112 teeth
- Self-rotating gear: 131 teeth
- Anticouple gear: 34T
- Reduction ratio: 7:1:3,85
- Weight in flight order (without batteries): 3320g
Kit content
- T-Rex 650X Dominator x1 kit
- Carbon fiber main blade 650 x1
- Carbon fiber tail blades 105mm 3K x1
- Brushless 800MX motor (440KV/4530) x1
- Type of aircraft kit : Kit to equip
- Helicopter category : Variable pitch
- Helicopter class : Class 650
