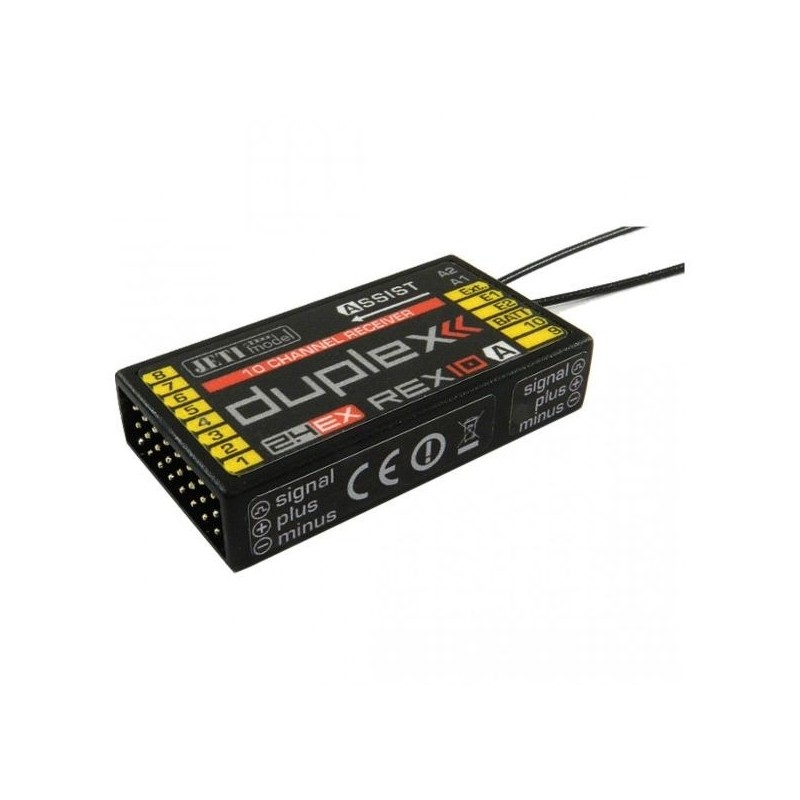

REX 10 ASSIST Duplex 2.4EX JETI receiver

REX 10 ASSIST Duplex 2.4EX JETI receiver

DUPLEX 2.4EX REX 7 Assist Receiver This JETI REX ASSIST receiver has an integrated 3-axis gyro for 3-axis stabilization of your model.integrated telemetry: 3-axis rotation angle, G-Force, temperature integrated ASSIST stabilization system with stabilization + heading hold + trainer mode for aircraft/glider and multicopter models. the stabilized EX bus signal can e.g. be connected to a CentralBox supported protocols: PPM, EXBUS, EX, ... programmable slot/socket functions accepts direct inputs compact dimensions 32-bit processor Full range Programmable via JETIBOX and wireless via DC / DS duplex transmitter
Read more
€196.90
Quantity :
Stock available

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical data

  • Number of servo functions: 10
  • Number of EXT inputs: 1
  • Weight [g] 18
  • Dimensions [mm] 51 x 28 x 11
  • Telemetry Yes, see above
  • Temperature range [° C] -10 ... 85
  • compatible protocols DUPLEX 2.4GHz EX, EX Bus, UDI
  • Antenna length [mm] 2 x 200
  • Voltage range [V] 3.2 8.4
  • Current consumption [mA] 30
  • Satellite receiver connection No
  • Output power [dBm] 15
  • Receiving sensitivity [dBm] -106
308-JDEX-RR10A
