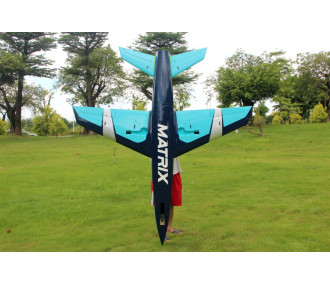

MATRIX 87" 2.20m Vector Jet with Pilot RC Electric Retractable Undercarriage

Ref: 008-MATRIX_VECT-87-03

Add to my favorites Remove from my favorites

After the success of the Predator Jet, here's the NEW sport jet for a new era. The Pilot-RC Matrix is an innovative approach to a new sport jet. Everything aerodynamic has been tested and learned from the Predator, and developed with one of the world's best pilots for Matrix performance. We can therefore say that this is the best sports jet ever designed, with ultimate flight characteristics for precise acrobatics. All the Matrix's features and the shape of the airframe were designed by one of Aircraftstudiodesign's top designers, Mirco Pecorari, much like the charismatic styling of hypercars.

€3,299.00

Quantity :

Out-of-Stock

Paiement sécurisé
Livraison 24/48h
Paiement 3X

Cheaper elsewhere?

Product description
Product characteristics

FEATURES:

Extremely lightweight full composite construction, specially designed for exceptional sport flying with 3D performance.
Painted on the outside of the mold, so no seam lines.
Ultra-light landing gear, the V2 landing gear of the 2.2 m predator sport jet can also be used on the Matrix.
Specially designed turbine access for rapid installation.
Installation in the field can be carried out in seconds, thanks to the wing-mounted quick-release fasteners, without the need for tools.
The elevator is attached from the top, with just a few turns to tighten/loosen the bolt and install/uninstall the stabilizer.
The wing and elevator are removable for easy transport.
The equipment installation panel makes it easy to install the electronics. Most cables can be concealed.
Easy-to-install pre-installation tube for stab/rudder extension wire.
Option with vector exhaust pipe for 3D flying.

Hardware included:

Complete aeroframe (including pre-installed and painted carbon wing tubes and fiberglass control horns)
Servo extensions
Normal exhaust pipe (optional Vector thrust pipe)
3,800ml fuel tank (optional)
250ml UAT tank
Pre-prepared pushrods with ball joints
Servo connection brackets

Hardware requirements:

Turbine size :

100-140N for normal sport flying
160-180N for 3D vector flight - Avoid high-speed, high-G flight

Servos: Total x10 (x5 standard size + x5 medium size)

x3 standard size at high torque
x2 for flaps (minimum 40kg)
x1 for rudder (minimum 40kg)
x2 for ailerons (minimum 16kg)
x2 for elevators (minimum 16kg)
x1 for vector elevator (minimum 16kg), this is an option
x1 for vector rudder (minimum 16kg), this is an option
x1 for steering (minimum 10kg)

Also requires all the usual accessories such as transmitter, receiver, batteries, power pack and possibly other small accessories.

Nota:

Aileron: 18mm, rudder: 50mm, elevator: 26mm.
Flaps: 25mm for take-off and 95mm for landing.
The center of gravity is 253mm from the leading edge of the wing to the fuselage. Measured with main tank empty, UAT full, landing gear down.
