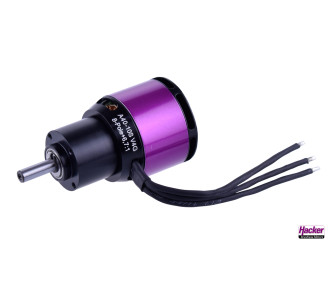

Hacker A40-10S V4G 8-Pole 1600kv brushless motor + gearbox 6.7:1
  • Hacker A40-10S V4G 8-Pole 1600kv brushless motor + gearbox 6.7:1
  • Hacker A40-10S V4G 8-Pole 1600kv brushless motor + gearbox 6.7:1
  • Hacker A40-10S V4G 8-Pole 1600kv brushless motor + gearbox 6.7:1
  • Hacker A40-10S V4G 8-Pole 1600kv brushless motor + gearbox 6.7:1

Hacker A40-10S V4G 8-Pole 1600kv brushless motor + gearbox 6.7:1

Product description and features

This A40 gearbox features the 8-pole version of the A40-S motor, proven thousands of times over. The high-torque, high-speed external rotor, combined with an efficient 6.7:1 planetary gearbox, has been specially designed for large electric gliders up to a take-off weight of around 8 kg. Thanks to the perfect coordination of motor and gearbox, this motor unit can drive propellers up to 23" in size efficiently and powerfully. It's a very robust and reliable system that works reliably even under extreme conditions and high loads.

This top-of-the-range motor, with its optimized weight of just 247g, is ideally suited to gliders weighing up to 8 kg.

Read more
€232.50
Quantity :
Stock available

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical data

  • Max. power [W] (max.15 sec.) 1500
  • Poles 8
  • Turns 10
  • Quiescent current (I0) at 8.4 V [A] 2.75
  • Internal resistance (Ri) [Ohm] 0.012
  • Gearbox 6.7:1
  • Recommended time [°] 15 - 20
  • Switching frequency [kHz] 8
  • Controller recommendation [A] (depending on configuration) 70 - 90
  • Leerlaufdrehzahl pro Volt (kv) ohne Getriebe 1600

Dimensions and weights

  • Weight [g] 247
  • Length [mm]/[in] 74
  • Outside diameter [mm]/[in] 41.7
  • Shaft diameter [mm] 6

Scope of delivery

  • Propeller adapter Nein
  • Mounting cross Nein
  • Gold plug mm (soldered) Nein
  • Gold plug mm (recommended) 4
  • Rear-mountable Nein
  • Front-mounted Ja

102-10109537
