308-JDEX-TDC24II-GL

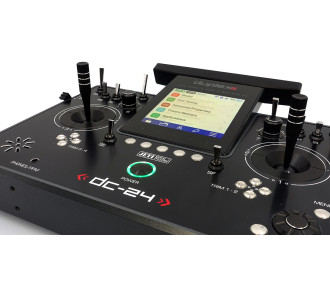

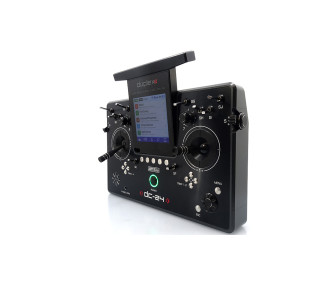

The next generation of the DC-24 II transmitter series with a unibody design offers a redesigned, even lighter frame for improved user comfort. Now, in addition to supporting Bluetooth connection to smartphones. A high-powered processor with a large memory allows high-quality texture settings and the use of higher resolution on a completely new, larger screen. The transmitter features a new JUi2 graphic interface.
- Paiement sécurisé
- Livraison 24/48h
- Paiement 3X
Key features:
- 4" LCD with high backlighting for better readability in bright sunlight
- Bluetooth connectivity for headphones
- Online telemetry via Bluetooth for smartphones
- Wi-Fi module
- Application to display telemetry on Android/iOS smartphones
- 900 MHz NG backup system
- New graphic design of JUi2 user interface
- Weight savings
- One connector for outputs - PPM and Phone
- USB-C connector for charging and connection with PC/MAC
- Full compatibility with Duplex system and previous JETI transmitters
- New frame color palette
- Weight [g] 1400
- Aluminum transmitter housing Yes
- Transmitter battery (mAh) 6200
- Backlit LCD 4
- Memory, SD card 8 GB
- Gimbal Hall sensors/Vibration Yes Yes
- Rod resolution 4096
- Transmitter frame Aluminum
- Gimbals and buttons Aluminum
- Number of 2.4GHz/900MHz antennas 4/1
- RF modules 2.4GHz/900MHz 2/1 NG
- Control inputs (stick/switch/button) 18 (up to 20)
- Dimensions [mm] 230x270x40
- Output power - 2.4 GHz [mW] 100
- Operating temperature [°C] - 10 to 60
- Channels 24
- Control inputs (stick/switch/button) 18
- Backup module 900 MHz Yes
- Flight modes ten
- Free mixes 30
- Data graphics Yes
- Audio player Yes
- Logic switches 24
- Number of remote controls 24
- Servo-sequencer ten
- Timers ten
- Telemetry values displayed 40
- Sound on events 40
- Alarms 40
- Vibration alarms Yes
- Voice output Yes
- MP3 Yes
- Microphone Yes
- Gyroscope parameters 3
- Servo balancer Yes
- Function curves Yes
- Throttle limiter (heli) Yes
- Variometer Yes
- Flight mode trim Yes
- Data flow logging 80
- Telemetry commands 64
- Voice commands 16
- Lua applications ten
- Servo Ditex telemetry 16
- Dual path Yes
- Accelerometer No
- Online telemetry via Bluetooth for smartphones Yes
- Bluetooth connectivity for headphones Yes
- Wi-Fi module Yes
308-JDEX-TDC24II-GL
- with handle / with steering wheel : with handle
- Number of radio channels : 24
