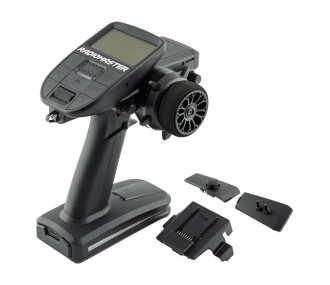

Radio control MT12 4in1 LBT module
  • Radio control MT12 4in1 LBT module
  • Radio control MT12 4in1 LBT module

Radio control MT12 4in1 LBT module

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. With 10 physical inputs and the ability to handle 16 or 32 channels*, the MT12 is ready for a wide range of surface models, from cars and trucks to boats and beyond. With a high degree of customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, ready to excel in virtually any scenario.

Read more
€139.90
Quantity :
Last items in stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Features

  • Available with integrated ExpressLRS backpack or MPM 4in1 RF modules
  • Featuring a powerful STM32F407VGT6 with 1MB Flash
  • EdgeTX firmware pre-installed
  • QC3.0 fast charging supporting 2.0A MAX
  • Compact design with excellent ergonomics
  • Oversized battery compartment - 2 18650 batteries or a 2s 7.4v 5000mah battery pack (batteries not included)
  • Standard compartment for Nano module
  • Standard RadioMaster button layout
  • Rotating antenna
  • Customizable basic switches or 4-way joystick included

MT12 specifications

  • Item: MT12 surface-mounted radio
  • Physical dimensions: 177.8*118.4*207.8mm
  • Weight: 480 grams
  • Operating frequency: 2.400GHz-2.480GHz
  • Internal RF options: 4-in-1 multi-protocol / ELRS 2.4GHz
  • Supported protocols: module-dependent
  • Operating current: 160mA for 4in1 / 320mA for ELRS
  • Operating voltage : DC 6.6-8.4V
  • Operating system: EdgeTX
  • Control channels: 16 as standard, expandable to 32 channels (4in1 only)
  • Display: 128*64 monochrome LCD
  • Battery: 2 x 18650 or a 2s 7.4v 5000mah battery (batteries not included)
  • Charging: Integrated USB-C charging
  • Firmware update method: Via USB or SD card
  • Wheel and trigger sensor: Hall effect
  • Module bay: Nano size (RadioMaster Ranger Nano module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

Specification R85C (included in 4in1 version)

  • Item: R85C receiver
  • Power supply: DC 4.5 - 8.4V
  • Frequency range: 2400-2483.5Mhz
  • Protocol support: D8/D16/SFHSS
  • Output channel: 5CH PWM
  • Antenna type: 2.4G high-sensitivity antenna
  • Telemetry power: 100mw / 20dbm
  • Weight: 5.7 grams
  • Dimensions: 31.0*18.5*13.0 31.0*18.5*13.0 mm

Package includes

  • 1 * MT12 Surface Radio 4in1 Version
  • 1 * R85C receiver
  • 1 * Expansion module for double switch
  • 1 * Expansion module for 4-way joystick
  • 1 * Nano adapter
  • 1 * USB-C cable
  • 1 * Leather strap
  • 1 * Customized RadioMaster carrying case
  • 1 * 18650 battery holder
  • 1 * Screen protector
  • 1 * Stickers
  • 1 * Manual
275-HP0157.0068-LBT
