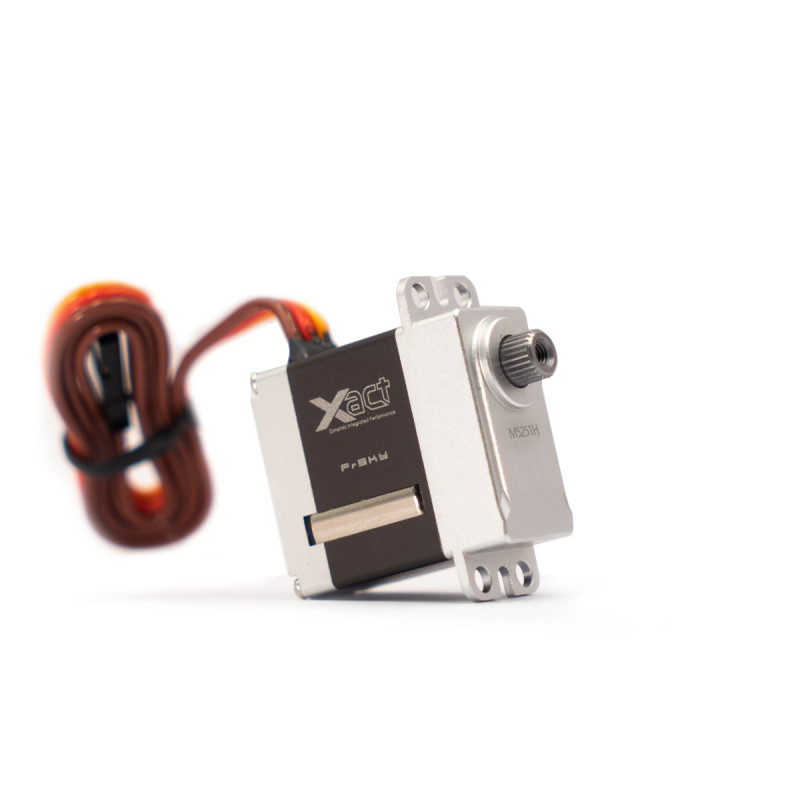

M5252H Xact STD 8.4V 5.3kg Coreless Servo

M5252H Xact STD 8.4V 5.3kg Coreless Servo

The Xact Series coreless servos use a fully CNC machined aluminum protective housing and benefit from metal gears. These high voltage servos are capable of handling up to 8.4V and offer high performance in terms of speed and torque. The Xact series servos fit many different types of models, especially when power, reliability and accuracy are required.

These high-quality servos support the FBUS protocol, which allows telemetry data (such as real-time current, voltage, temperature, etc.) from Xact servos to be transmitted to the radio by connecting an FBUS-compatible receiver or flight controller. The Xact servos offer a configurable travel (90° / 120° / 180°). The servo travel and other options are now available for adjustment via the ETHOS Xact configuration tool or the Freelink application.

Read more
€54.90
Quantity :
Stock available

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Dimension: 23*12*29mm (L*W*H)

Weight: 23g

Dentition: 25T

Power supply voltage: 4.8-8.4V

Frequency: 333Hz

Torque: 3.8Kg at 6.0V 4.7Kg at 7.0V 5.3Kg at 8.4V

Speed: 0.06s/60° under 6.0V 0.05s/60° under 7.0V 0.04s/60° under 8.4V

Sprockets: metal

146-03050624
  • Thickness in mm (Servos) : 12
  • Torque in kg.cm (servos) : 5.3
  • Speed sec / 60° (servos) : 0.04
  • Pinions (servos) : Metal
  • Technology (sevos) : Digital
  • HV (servos) : yes
  • Weight in g (servos) : 23
