High torque, ultra high speed 79g brushless servo with titanium/hardened steel gearing and triple BB-ed output shaft. Works perfectly as a tail servo for RC 500-800 helicopters equipped with advanced gyro and flybarless control systems. All-aluminum housing for perfect cooling under heavy load.
Narrow band servo - 760 µs neutral, refresh rate up to 666 Hz - to be used only with compatible gyro/flybarless control systems as tail (yaw) servo. It should not be connected to the normal receiver channel output (1520 µs neutral). Always make sure you have the correct servo type (narrow band) set on your gyro/control unit.
The GO-11T80MG is not programmable.
Wide input voltage range 4.8-7.4V (nominal).
25T/5.92 mm output shaft.

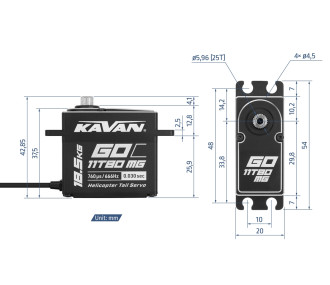

Servo dimensions 40X20X38
Servo type Digital
Programmable No
Thrust at 4.8V [kg/cm] 12
Thrust at 6.0V [kg/cm] 14
Thrust at 7.4V [kg/cm] 15.5
Thrust at 8.4V [kg/cm] 18.5
Speed at 4.8V [s/60st.] 0.045
Speed at 6.0V [s/60st.] 0.039
Speed at 7.4V [s/60st.] 0.034
Speed at 8.4V [s/60st.] 0.03
Servo gears Metal,Titanium
Ball bearings 3×
High-voltage Yes
Power supply [V] 4.8 - 8.4
Length [mm] 40
Width [mm] 20
Height [mm] 37.5
Weight [g] 79
Intended for Helicopters
