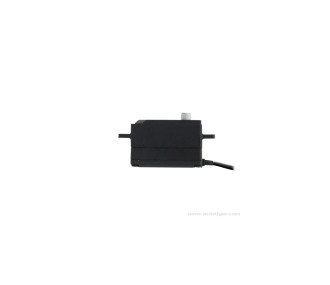

New "Low profile" servo for high-power RC models with metal housing and metal gears New HPS brushless motor technology specially designed for higher performance and better cooling. (SR UR compatible). This servo has been developed for use with the Futaba F4G system, the fastest on the market today.
Help us to offer you the best price on the product "FUTABA HPS CT701 SERVO"
To help us improve your experience on our site, we are always interested in hearing from you!
And offering you the best possible price is one of our priorities, so if you find one of our products cheaper elsewhere on a competing European site, please let us know by filling in the form below.
Technical specifications: - High-performance HPS digital servo S.BUS2 - Metal housing and metal gear - Brushless HPS motor technology - T-FHSS SR (Super Response) and "UR" (Ultra Fast Response) compatible - High voltage - Ball bearing - Low-wear potentiometer - High resolution - High feedback accuracy
With the new HPS technology, power consumption is reduced over the entire operating time. Like all S.BUS2 servos, the HPS-CT700 can be connected to all conventional PWM-modulated receivers, and can be optimally adapted to the respective application conditions by programming.
The servo is fully compatible with the SR ("Super Response": fastest signal transmission) mode of the T7XC, T7PX and T4PM.
This servo can be programmed in various ways: 1. With the handy SBC-1 programmer 2. On the PC with the CIU-3 USB adapter 3. On the transmitter's S.BUS connection
The following parameters can be set: - S. BUS channel assignmentBUS channels - Servo rotation direction - Soft start (on / off) - Mode selection in case of Hold or Free signal failure - Soft servo operation (on / off) - Servo position (servo tester) - Servo center adjustment +/- 300 µs (approx. 30 degrees) - Servo speed, 0.39 - 9 seconds per 45 degrees - Deadband definition (deadband) - Left and right servo travel adjustment separately, approx. 50 to 175% - Starting power - Damping - Holding power
Features: Dimensions :40.5 x 21.0 x 26.2 mm Weight: 54 g Speed at 7.4V: 0.07s/60° Torque at 7.4V: 30 kg/cm
New "Low profile" servo for high-power RC models with metal housing and metal gears New HPS brushless motor technology specially designed for higher performance and better cooling. (SR UR compatible). This servo has been developed for use with the Futaba F4G system, the fastest on the market today.
