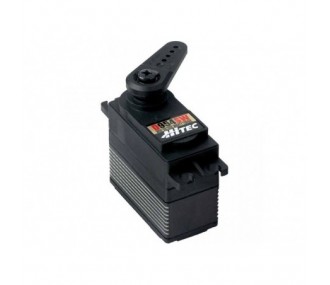

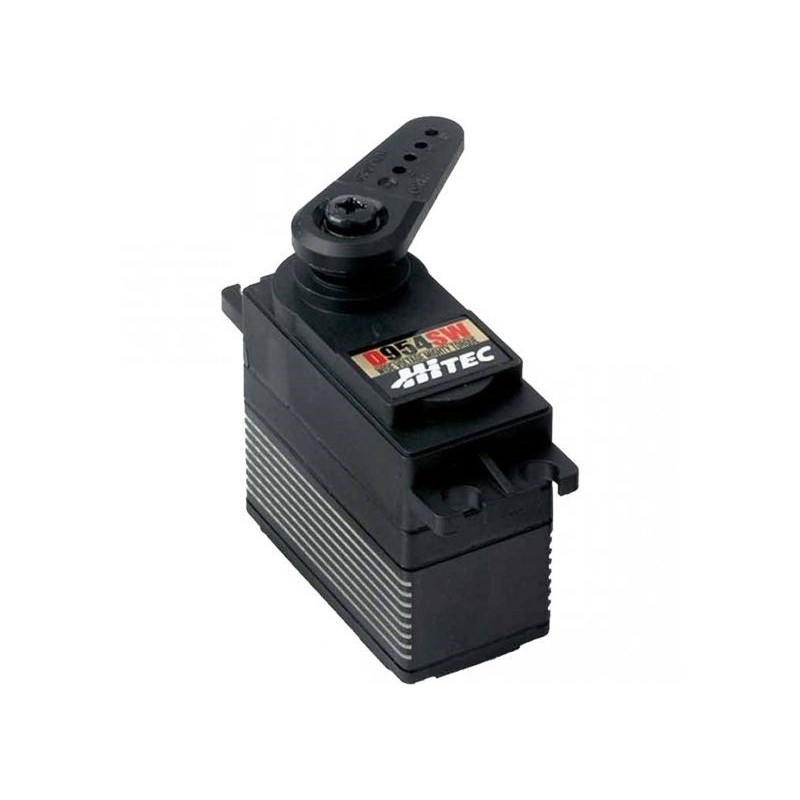

Hitec D-954SW HV digital servo

Hitec D-954SW HV digital servo

Hitec D 954 SW HV digital servoThe ultra-fast HS D-954 SW HITEC D-Series servos offer the highest resolution on the market today. The best response and programming capabilities are achieved through the 32-bit MCU and 12-bit ADC technology.The 'D' series includes HITEC servos that operate on both conventional (4.8/6V) and HV (8.4V) voltage. The HS-D954 SW Digital servo is fully programmable and offers good durability thanks to its robust full steel gears and two ball bearings on the output shaft, which is especially suitable when low backlash and high positioning accuracy are important.The long life and uniquely designed transmission make it one of the most reliable and efficient servos on the market.
Read more
€94.90
Quantity :
Out-of-Stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Features :

  • Width: 20 mm
  • Height: 37 mm
  • Length: 40 mm
  • Weight: 66gr
  • Servo type: standard
  • Special features: wide-voltage digital
  • Servo motor type: coreless
  • Equipment: steel
  • Operating voltage in V: 4.8-8.4 V
  • Operating time s / 60 ° at 4.8 volts: 0.19
  • Operating time s / 60 ° at 6.0 volts: 0.15
  • Operating time s / 60 ° at 7.4 volts: 0.12
  • Torque in kgcm at 4.8 volts: 18
  • Torque in kgcm at 6.0 volts: 24
  • Torque in kgcm at 7.4 volts: 29
  • Gear: 25T
  • Ball bearing: yes
  • Sealed: no
064-116954
  • Thickness in mm (Servos) : 20
  • Torque in kg.cm (servos) : 29
  • Speed sec / 60° (servos) : 0.12
  • Pinions (servos) : Metal
  • Bearing (servos) : yes
  • Technology (sevos) : Digital
  • HV (servos) : yes
  • Weight in g (servos) : 66
