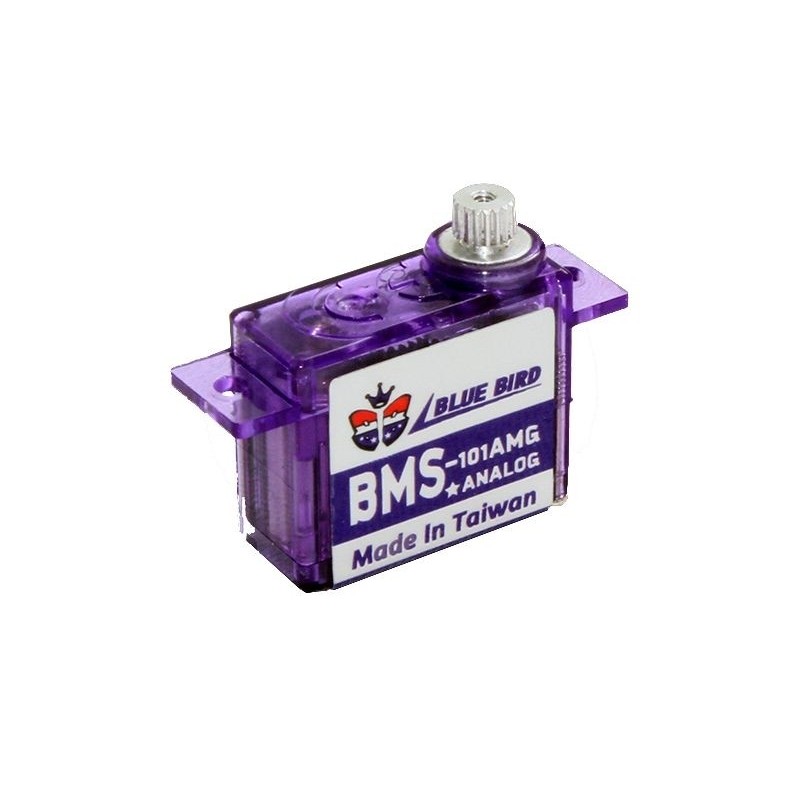

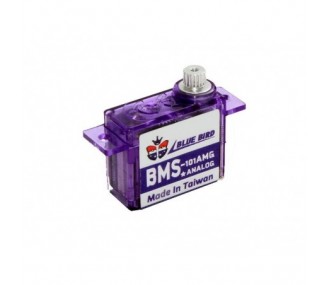

The Blue Bird BMS-101AMG servo is an analog nano servo of only 4.4gr.
The Blue Bird BMS-101AMG is a LV servo operating from 3.7 to 6V, so it can be powered by a 1S Lipo battery (>50% charge)

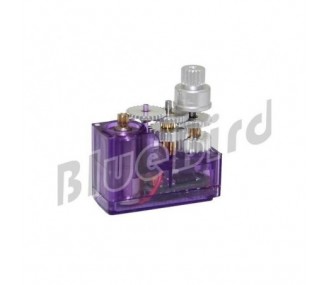

It is equipped with a metal gear and a Coreless motor.
With 4.4gr and 7.6mm thickness, this servo will find its place in small models or F3P/F3K
Operating voltage : 3.7V to 6.0V DC
Speed : 0.11sec/60° (3.8V) - 0.07sec/60° (6.0V)
Locking torque : 0.6kg/cm (3.8V) - 1.1kg/cm (7.4V)
Gears : Metal
Cable length : 16 cm
Dimensions : 18.6 x 7.7 x 15.7 mm
Weight : 4.4 gr
