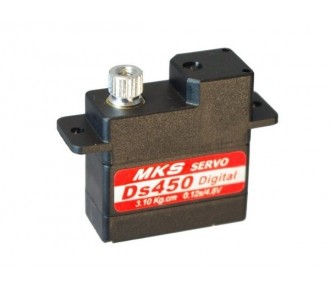

Digital metal servo DS450 Mks

Digital metal servo DS450 Mks

FLASH RC, authorized distributor MKS for France offers this micro digital metal servo of high quality: - digital servo - set of metal gears - double bearing - blocking torque of 3.22kg/cm under 5.0V with a speed of 0.115sec/60° - dead band: 0.002ms - Dimensions: 22.5x10x23.5 mmThe DS450 is a very thin (10mm), fast and powerful micro servo that will find its place in many models such as gliders <2.0m, aircraft class 30, cyclic heli class 450It is recommended to power it with 4S NiMh or with a BEC at 5.0V maximum.
Read more
€34.90
Quantity :
Stock available

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

DS-450 Features

Dead band: 0.002ms (Default)
Control System: +Pulse Width Control
Working frequence: 1520µs / 333hz
(RX) Required Pulse: 3.0 ~ 5.0 Volt Peak to Peak Square Wave
Operating Voltage: 4.8 ~ 5.0 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (4.8V): 0.120 sec/60° degrees at no load
Operating Speed (5.0V): 0.115 sec/60° degrees at no load
Stall Torque (4.8V): 3.10 kg.cm (43.0 oz/in)
Stall Torque (5.0V): 3.22 kg.cm (44.7 oz/in)
360° Modifiable: YES
Motor Type: Coreless Motor
Potentiometer Drive: Indirect Drive
Driver Type: FET
Bearing Type: Dual Ball Bearings
Gear Type: Metal + Aluminum-magnesium alloy Gears
Programmable: YES
Connector Wire Length: 15.0 cm (5.9 in)
Dimensions: 22.5X10X23.5 mm (0.89x 0.39x 0.93 in)
Weight: 9.5 g (0.335 oz)

128-S0009001
  • Thickness in mm (Servos) : 10
  • Torque in kg.cm (servos) : 3.1
  • Speed sec / 60° (servos) : 0.11
  • Pinions (servos) : Metal
  • Bearing (servos) : yes
  • Technology (sevos) : Digital
  • HV (servos) : no
  • Weight in g (servos) : 9.5
