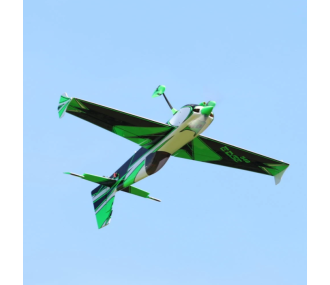

OMPHOBBY presents the Edge 540 60 "in a Carbon/Kevlar-reinforced balsa version, coated with Oracover, highly durable and brightly colored. The Edge 540 is a 3D BEAST. This plane will do everything you want and more. If you don't like flying in 3D, don't be afraid, this plane also flies very well as an Aresti-style aerobatic plane.
Help us to offer you the best price on the product "OMPHobby PNP Edge 540 Green/Black approx 1.52m 60' Aircraft"
To help us improve your experience on our site, we are always interested in hearing from you!
And offering you the best possible price is one of our priorities, so if you find one of our products cheaper elsewhere on a competing European site, please let us know by filling in the form below.
OMPHOBBY presents the Edge 540 60 "in a Carbon/Kevlar-reinforced balsa version, coated with Oracover, highly durable and brightly colored. The Edge 540 is a 3D BEAST. This plane will do everything you want and more. If you don't like 3D flying, don't be afraid, this plane also flies well as an Aresti-style aerobatic plane.
It can be fitted with a brushless motor from 1200 to 1600W and a 6S LiPo battery. The fuselage Extremely lightweight balsa/plywood fuselage reinforced with Kevlar®/carbon composite, with numerous carbon parts, a removable fiberglass cowling and a large canopy providing perfect, easy access to the entire power system and RC equipment. The motor is mounted on a reinforced plywood/composite housing using a radial support.
The two-piece wing is made entirely of balsa, with a symmetrical aerodynamic profile and a carbon wing key, The wing halves are bolted to the fuselage. The large ailerons are each controlled by a single servo. You can install the supplied SFG winglets on the wingtips.
The tailplane is made of lightweight balsa wood, the "horizontal" tail is a single-piece unit, glued into the fuselage. The elevator and vertical stabilizer are controlled by servos installed in the aft fuselage.
The main undercarriage is carbon, with fiberglass fairings, lightweight wheels and a tailwheel with a support. tailwheel with carbon support is coupled to the vertical stabilizer.
Recommended parameters for double rates and control surface exponentials:
Travel
EXPO
Direction
Value
Aileron
High
35~40%
Up
36~39°
Low
40~45%
Downward
20~26°
Depth
High
38~45%
Upwards
45~53°
Low
45~55%
Downward
30~35°
Drift
High
38~45%
Upward
42~50°
Low
45~55%
Downward
28~32°
Features Dimensions:
Color: GREEN Motorization: EP Wingspan: 1524mm Length: 1500mm Wing area: 42.32dm² Wing loading: 66gr/dm² Center of Gravity: 86-95mm Weight: ~2,75 - 2,85kg
Kitcontents:
ARF kit in balsa reinforced with kevlar canvas Oracover A cowling, wheel fairings in painted fiberglass A carbon main gear A tailwheel The wheels Accessories
Radio and receiver: 4 channels minimum Brushless motor: 1200-1600W, Controller: 80-100A LiPo battery: 6S 3300-4000mAh Propeller: depending on motor or 15x8",16x8".
OMPHOBBY presents the Edge 540 60 "in a Carbon/Kevlar-reinforced balsa version, coated with Oracover, highly durable and brightly colored. The Edge 540 is a 3D BEAST. This plane will do everything you want and more. If you don't like flying in 3D, don't be afraid, this plane also flies very well as an Aresti-style aerobatic plane.
