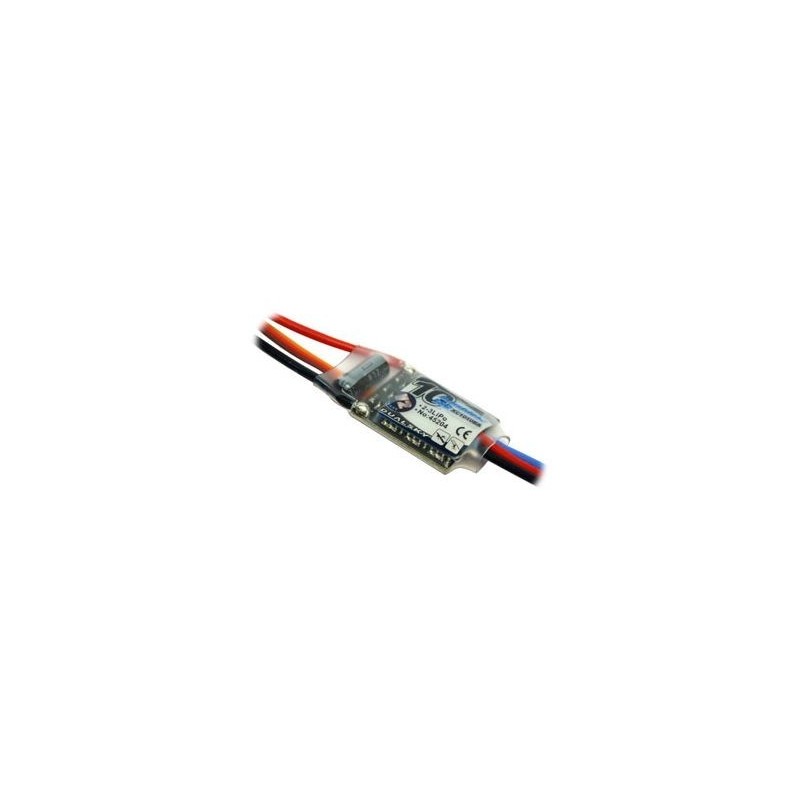

10A V2 Brushless Controller - XC1010BA Dualsky

10A V2 Brushless Controller - XC1010BA Dualsky

Quality DUALSKY brushless controller, suitable for most applications. Easy to use, the parameters can be programmed through the throttle of the radio control or with a programming card available in option. A safe and reliable value for your electric models.
Read more
€25.99
Quantity :
Stock available

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Product description

  • High rate of PWM modulation (10 KHz)
  • Possibility to activate or deactivate the programmable dynamic brake ensuring the fast folding of the propeller.
  • Thermal protection in case of overheating
  • Easily programmable features via the throttle or with a programming card
  • Low voltage protection - the cut-off value can be programmed.
  • The cut-off voltage can be programmed for motor stop or reduced power.
  • Secure "power on" to prevent unintentional start-up.
  • Programmable "soft start" to prevent damage to the gearbox.
  • Automatic shutdown after 4 seconds of signal loss or when receiving a bad signal.
  • Controlled by a state of the art microprocessor

Technical data

Input voltage:2-3 LiPo / 5-10 NiXx

Continuous current:10A

Max current (15s.) :15A

BEC :1A - 5V (linear)

Dimensions :28 x 18 x 6 mm

Weight :9,5gr.

Socket on battery side :JST-BEC

Socket on motor side:DB2

016-XC1010BA
