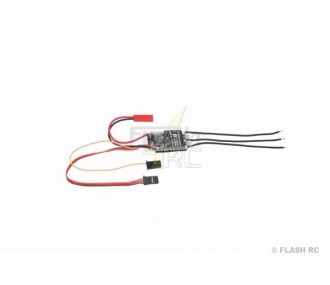

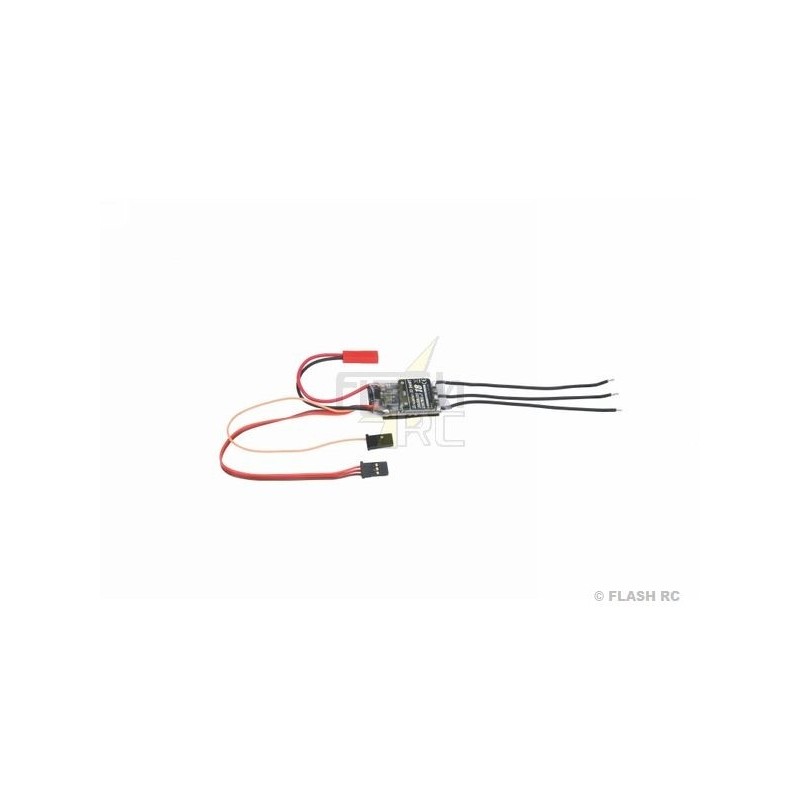

Brushless controller 18A + telemetry BEC 5.0-8.0V Graupner

Brushless controller 18A + telemetry BEC 5.0-8.0V Graupner

Graupner 18A brushless controller with integrated telemetry and switching BEC with adjustable output voltage.
Read more
€33.11
Quantity :
Out-of-Stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical data

  • Efficient and extremely powerful clocked SBEC system, voltage adjustable between 5.0 - 8.0 V in 0.2 V steps.
  • Graupner HoTT telemetry data and warnings for voltage, current, temperature, speed and capacity
  • Mass with wiring: 16g
  • Continuous current: 18 A
  • NOZZLE: 5.0...8.0/2 V/A
  • Soft start: programmable
  • EMK brake: programmable
  • Frequency range: 32 kHz
  • Dimensions with capacitor: 38 x 23 x 8mm
  • Battery connection: JST-BEC
  • Number of cells, LiPo, Lilo: 2 ... 4
  • Number of cells, NiCd, NiMH: 6 ... 12
  • BEC short-time current: 3 A
  • Supply voltage: 5.5 ... 15V

Controller programming and telemetry

  • Battery type NiCd/NiMH/LiIo/LiPo/LiFe
  • Regulation voltage
  • Regulation type soft/hard
  • Direction of rotation
  • Motor timing
  • Ramp-up time
  • Starting torque
  • Brake On/Off
  • Reverse gear for boats/cars, On/Off
  • Cruise control mode for helicopters, On/Off
  • Regulating speed in governor mode
  • Number of motor poles
  • Reduction
  • Telemetric warnings
  • Low voltage limit
  • Maximum current
  • Minimum rotation speed
  • Maximum temperature
  • Maximum capacity
094-33718
