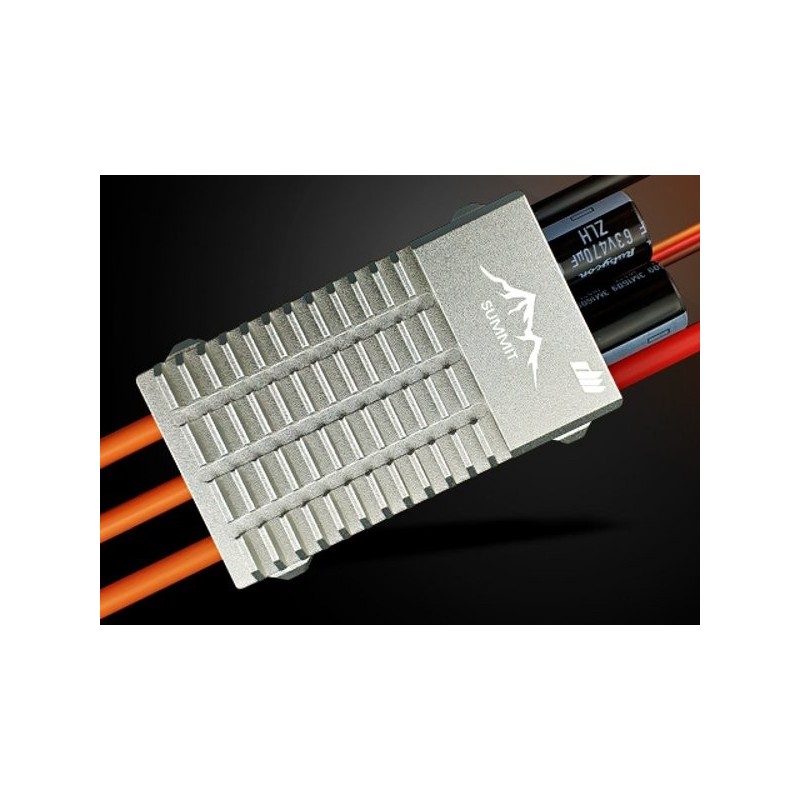

120A Brushless Controller - Summit Dualsky

Product description

• High rate of PWM modulation (10 KHz)
• Possibility to activate or deactivate the programmable dynamic brake ensuring the fast folding of the propeller.
• Thermal protection in case of overheating
• Easily programmable features via the throttle or with a programming card
• Low voltage protection - the cut-off value can be programmed.
• The cut-off voltage can be programmed for motor stop or reduced power.
• Secure "power on" to prevent unintentional start-up.
• Programmable "soft start" to prevent damage to the gearbox.
• Automatic shutdown after 4 seconds of signal loss or when receiving a bad signal.
• Controlled by a state of the art microprocessor
• Aluminum housing
• Automatic timing adjustment
• Equipped with an original Antispark
• 4.0mm gold plug on the motor side

Technical specifications

Input voltage :2-8S LiPo

Continuous current :120A

Max current (15s.) :150A

BEC :Yes, Switch Bec 8A, 5 to 7.4V Adjustable

Dimensions: 80x 37.5 x 19.7 mm

Weight :155gr.
