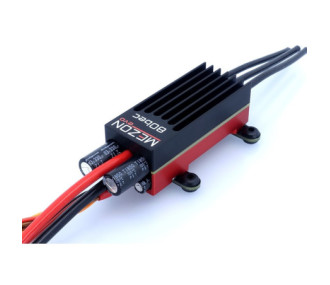

Jeti Mezon evo 80 BEC controller
308-JME-080-B
MEZON EVO 80 BEC controllers have an aluminum housing that allows for efficient cooling.
MEZON EVO 80 BEC is a completely universal controller for aircraft, helicopter, boat and vehicle models for users of not only JETI Duplex transmitters, but also other RC systems.
Specifications:
- full EX telemetry (voltage, current, capacity, revolution, etc.)
- device configuration via EX Bus communication from the JETI Duplex transmitter
- accurate governor and full support of helicopter models
- F3A mode for aerobatic aircraft
- adjustable brake with energy recovery in the accumulator
- powerful BEC with adjustable output voltage
- wide supply voltage range 2 - 12 Lixx (max. 51V)
- bi-directional motor operation possible
- active proportional brake
- efficient cooling
- compact dimensions
- user-friendly wizard for quick configuration of the controller ("Quick Setup mode")
- in "expert mode", access to all controller programming options
Features :
- Weight [g] 120
- Dimensions [mm] 28 x 25 x 85
- Sustained current [A] 80
- Telemetry Yes
- Operating temperature [°C] -10 to 85
- Supply voltage [V] 6 to 51
- LiXX batteries 2 to 12
- BEC voltage [V] 5 to 8.4
- Conductive resistance [mΩ] 1.2
- Cable cross-section (input/output) [mm²] 4 / 2.5
- OPTO (radio signal optically separated from power management) No
- Average current BEC [A] 15
- Peak current BEC 1s [A] 30
- Aluminum box
308-JME-080-B
- Intensité Contrôleurs : 80
