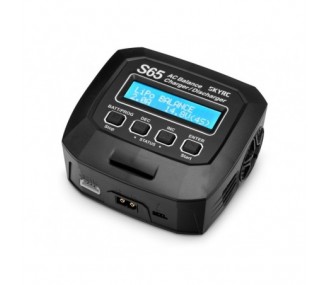

Charger S65 Screen (2-4S AND 6A- 65W) 220V Sky-Rc

The S65 from SKYRC is a mains powered charger/discharger with a compact size (117 x 105 x 55 mm). Like most SKYRC chargers, it features TVC (Terminal Voltage Control), battery measurement and can be connected to a PC for PC control and firmware updates. The S65 has a maximum charge power of 65W with a maximum charge current of 6A and a maximum discharge current of 2A. It is a high-performance, microprocessor-controlled charge/discharge station with battery management, suitable for all types of batteries: LiPo, LiIon, LiFe, NiCd, NiMH, Pb and even the new generation of LiHV batteries with an end-of-charge voltage of 4.35 V. For lead-acid batteries, the e680 adds AGM and Cold Charge modes. It can charge AGM batteries and lead-acid batteries can be charged in cold weather in "Cold Charge" mode. The advantages of this charger: - compatible LiPo HV - LiPo tester (voltage & internal resistance) - 220V power supply - possible control on PC
Read more
€33.25
Quantity :
Stock available

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Specifications

  • Power supply : 100-240 V AC (Mains)
  • Display type: LCD 2 lines of 16 characters
  • Backlighting : Blue
  • Housing: Plastic
  • Control: Four buttons
  • Housing dimensions: 117 x 105 x 55 mm
  • Weight: 315 g
  • External sockets: XH balance sockets for 2 to 4 cells, temperature sensor socket, XT60 female battery charging sockets.
  • Delta-Peak detection for NiMH/NiCd: 3-15 mV/cell, fault 4 mV/cell.
  • Safety cut-off temperature: 20 °C/68 °F to 80 °C/176 °F (adjustable)
  • End of charge voltage: NiMH/NiCd: delta-peak detection
  • LiPo: 4.18-4.25 V/cell LiIon: 4.08-4.2 V/cell
  • LiFe: 3.58-3.7 V/cell LiHV: 4.25-4.35 V/cell
  • Pb Normal: 2.4 V/cell Pb AGM: 2.45 V/cell
  • Pb Cold: 2.45 V/cell
  • Balancing current: 200 mA/cell
  • Voltage reading range: 0.1-26.1 V/cell
  • Number of cells per battery type: LiPo/LiIon/LiFe/LiHV: 2 to 4 cells
  • NiMH/NiCd: 6 to 8 cells
  • Lead: 3 to 6 cells
  • Battery capacity range: NiMH/NiCd: 100-50000 mAh
  • LiPo/LiIon/LiFe/LiHV: 100-50000 mAh
  • Lead acid: 100-50000 mAh
  • Charging current: 0.1 to 6.0 A
  • Safety timer: 1-120 minutes / OFF
  • Charging power: 65 W
  • Discharge current: 0.1 to 2.0 A
  • End of discharge voltage: NiMH/NiCd: 0.1-1.1 V/cell
  • LiPo: 3.0-3.3 V/cell LiIon: 2.9-3.2 V/cell
  • LiFe: 2.6-2.9 V/cell LiHV: 3.1-3.4 V/cell
  • Pb: 1.8 V-2.0 V/cell
  • Discharge power: 10 W
  • Number of cells that can be balanced: 2-4 cells
  • Memories: 10 different charge/discharge profiles.
  • Charging methods: DC/CV for Lithium and Lead Acid batteries
  • Delta peak detection for NiMH and NiCd
096-SKY100152
  • Charger source : 220V/sector only
  • Charger power in Watts : 65
