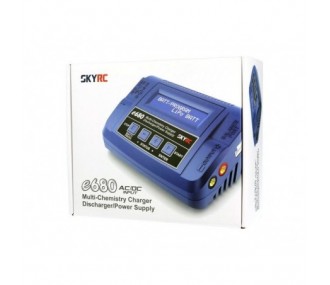

Charger IMAX e680 80W 1-6S 12/220V Sky-Rc

The SKYRC e680 is a high-performance, microprocessor-controlled charger/discharger/power supply with battery management, suitable for all common battery types. It has a balancer for up to six Lithium Polymer (LiPo), Lithium Iron Phosphate (LiFe), Lithium Ion (LiIon) and Lithium High Voltage (LiHV) cells. Its maximum charge current is 8A with a charge power of 80W. For lead-acid batteries, the e680 adds AGM and Cold Charge modes. It can charge AGM batteries and lead-acid batteries can be charged in cold weather in the "Cold Charge" mode.This charger can be powered either by 11 to 18V DC or AC (100 to 240V AC) with the built-in power switching system.In addition, the e680 is also capable of powering DC devices such as a tire sander, stand light or engine tester, etc. The new features and functions are listed and explained on the following pages.
Read more
€41.66
Quantity :
Stock available

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Specifications

  • DC power supply voltage: 11 to 18 V
  • Power supply voltage: 100-240 V AC
  • Display type: LCD 2 lines of 16 characters
  • Backlighting: Blue
  • Housing: Plastic
  • Control: Four buttons
  • Housing dimensions: 135 x 11 x 60 mm
  • Weight: 390 g
  • External sockets: XH balance sockets for 1 to 6 cells, temperature sensor socket, battery charging sockets, DC input.
  • Delta-Peak detection for NiMH/NiCd: 3-15 mV/cell, fault 4 mV/cell.
  • Safety cut-off temperature: 20 °C/68 °F to 80 °C/176 °F (adjustable)
  • End of charge voltage:
  • NiMH/NiCd: delta-peak detection
  • LiPo: 4.18-4.25 V/cell LiIon: 4.08-4.2 V/cell
  • LiFe: 3.58-3.7 V/cell LiHV: 4.25-4.35 V/cell
  • Pb normal: 2.4V/cell Pb AGM: 2.45 V/cell
  • DJI: 13.05 V Pb Cold: 2.45 V/cell
  • Balancing current: 300 mA/cell
  • Voltage reading range: 0.1 to 26.1 V/cell
  • Number of cells per battery type:
  • LiPo/LiIon/LiFe/LiHV: 1 to 6 cells
  • NiMH/NiCd: 1 to 15 cells
  • Lead: 2 to 20 V
  • DJI: 3 cells (LiHV)
  • Battery capacity range:
  • NiMH/NiCd: 100-50000 mAh
  • LiPo/LiIon/LiFe/LiHV: 100-50000 mAh
  • Lead acid: 100-50000 mAh
  • Charging current: 0.1 to 8.0 A
  • Safety timer: 1-720 minutes / OFF (Default: 120 min)
  • Charging power: 0-80 W
  • Discharge current: 0.1 to 2.0 A
  • End of discharge voltage :
  • NiMH/NiCd: 0.1 to 1.1 V/cell
  • LiPo: 3.0-3.3 V/cell LiIon: 2.9-3.2 V/cell
  • LiFe: 2.6-2.9 V/cell LiHV: 3.1-3.4 V/cell
  • Pb: 1.8 V
  • Discharge power: 10 W
  • Number of cells that can be balanced: 2-6 cells
  • Memories: 10 different charge/discharge profiles.
  • Charging methods: DC/CV for Lithium and Lead Acid batteries
  • Delta-peak detection for NiMH and NiCd
  • Power supply function: Output voltage: 13.8 V, power adjustable from 0 to 80 W.
096-SKY100149
  • Charger source : 12V and 220V/Sector
  • Charger power in Watts : 80
