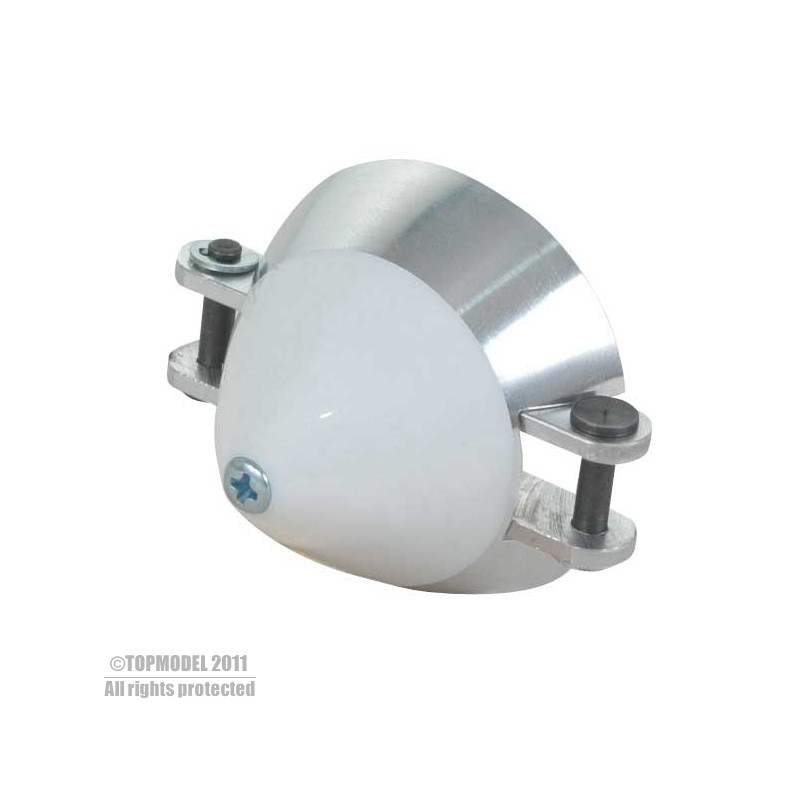

CONE HEL. REP. Ø40/3.0 mm

Precision cone for folding propeller

[%IMAGE2%]

[%IMAGE3%]

• High-quality aluminum and plastic cone for electric gliders.
• Die-cast cone ogive in resistant plastic.
• Cone flange machined on Cnc machines.
• Aluminum propeller hub with blade feet secured by pin and snap ring.
• Secured to the motor shaft by an aluminum clamp system ensuring high hold and perfect centering.

Technical specifications:

• Cone diameter (A): Ø40 mm
• Cone length (B): 28 mm
• Blade center distance (C): 40 mm
• Blade carrier width (D): 12 mm
• Blade-holder thickness (E): 8 mm
• Blade root thickness (F): 6 mm
• Blade axis diameter (G): Ø2 mm
• Blade axis length (H): 10 mm
• For motor shaft (J): Ø3.0 mm
