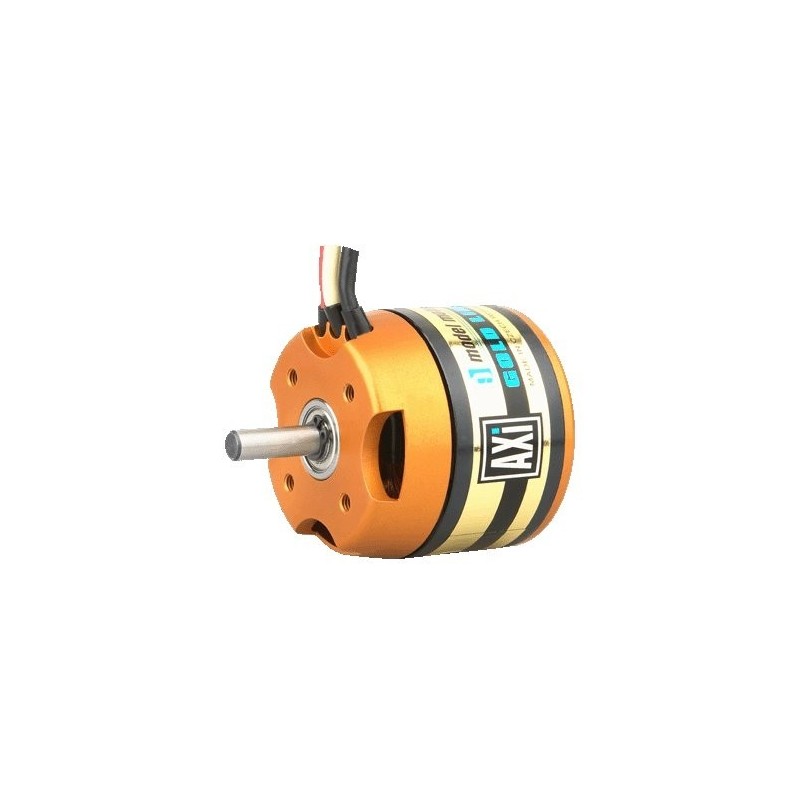

AXI 4120/20 GOLD LINE This appears to be a product name or model number and does not require translation, as it is already in English. If you need further clarification or context, please provide more information.

The main interest of AXI brushless motors is the ability to turn large propellers directly thanks to their external rotor. This design of the motor allows to develop a torque without any relation with the so-called conventional motors.
The AXI solution offers an excellent mass/power/price ratio.

The AXI41xx rotating cage motors have been specially developed for large electric models.
These are 14-pole motors with low revolutions per Volt capable of turning large propellers directly with excellent efficiency.
Thanks to their new design, they can also be mounted radially using the optional radial mounting set.

Read more
€168.00
€159.90
Quantity :
Last items in stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

AXI 4120/20 GOLD LINE

The AXI 4120/20 GOLD LINE is recommended to be powered by LiPo 5S and 6S batteries for 3D models up to 3500g and gliders up to 5000g at take off.

Technical specifications:

  • Recommended number of cells: 5-6 LiPo
  • Number of revolutions per Volt: 465
  • Max. efficiency: 87%.
  • Max. power consumption: 13-37A (over 82%)
  • No load current/10V: 1,5A
  • Max. current: 52A/60
  • Internal resistance: 82mOhm

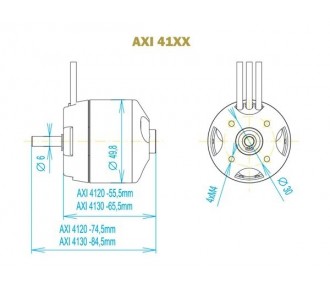

  • Dimensions: Ø49x55,5mm
  • Motor shaft diameter: 6mm
  • Weight: 320g
  • Max model weight: 3200-5000g
  • Recommended propeller: 15 "x8"/15 "x10"/16 "x8"/17 "x8"

123-412020
  • Engine weight : from 100g to 599g
