Futaba R6308SBT FASST 8 Channel Receiver
  • Futaba R6308SBT FASST 8 Channel Receiver
  • Futaba R6308SBT FASST 8 Channel Receiver
  • Futaba R6308SBT FASST 8 Channel Receiver

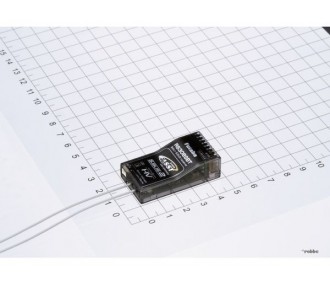

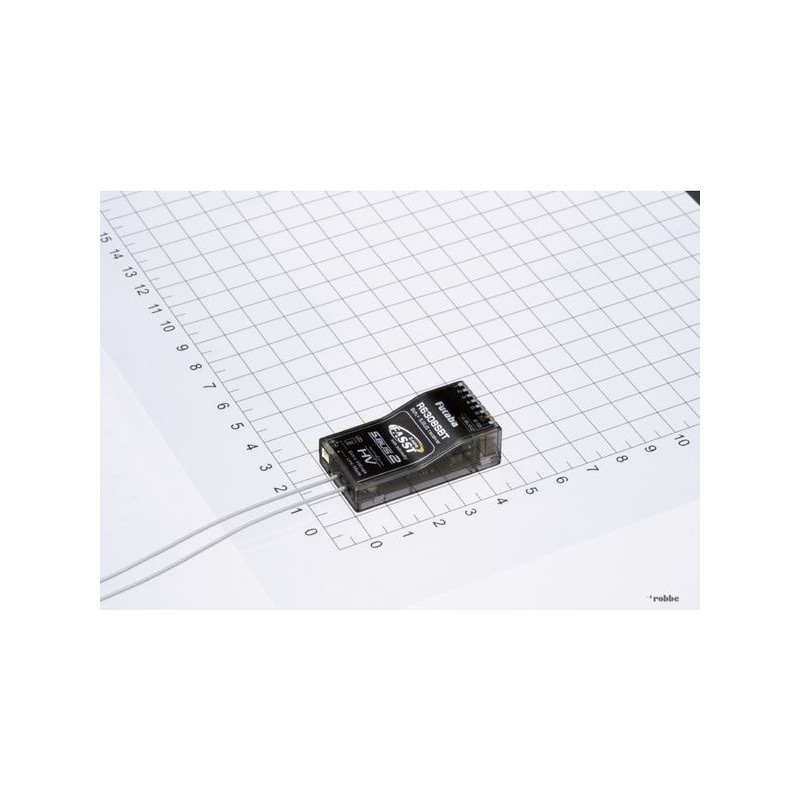

Futaba R6308SBT FASST 8 Channel Receiver

Compact, lightweight 8-channel R6308SBT 2.4 GHz FASST receiver with integrated FASSTest telemetry transmitter.

Compatible with FASST or RASST (Robbe) transmitters.

NOTE: Telemetry is only compatible with the telemetry Box (telemetry not compatible with the 14SG or 18MZ).

Read more
€142.90
Quantity :
Out-of-Stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

FASST Receiver Compatibility

General characteristics

  • Integrated telemetry transmitter for transmitting up to 32 telemetry data to the ground with a range of over 1000m.
  • 8 PWM channels for connecting conventional servos.
  • Possibility to operate two receivers in parallel allowing to double the number of channels (up to 16 channels), but also the number of telemetry data (64).
  • Channel 8 can be used in S-BUS mode allowing to connect up to 18 S-BUS servos.

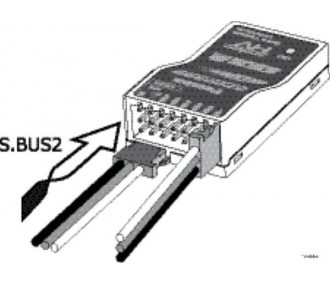

  • S-BUS plug 2 to connect probes (the data collected by these probes will be transmitted to the ground via the FASSTest receiver which will display them on a screen or in the form of audible announcements

Technical specifications

  • Frequency band : 2.4 - 2.4835 Ghz
  • Number of channels : 18
  • Transmission system: FASST/ FASSTest

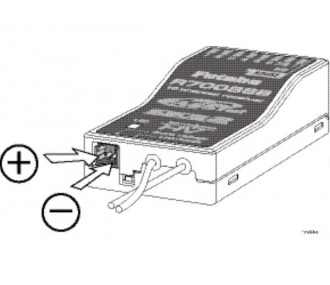

  • Supply voltage: 3.7 - 7.4 V (4-5NiMh, 2LiFe, 1-2LiPo)
  • Power consumption: 50mA
  • Dimensions: 47x25x14.3mm
  • Antenna length: 14cm
  • Weight: approx. 13g

French manual

To download

066-01000674
