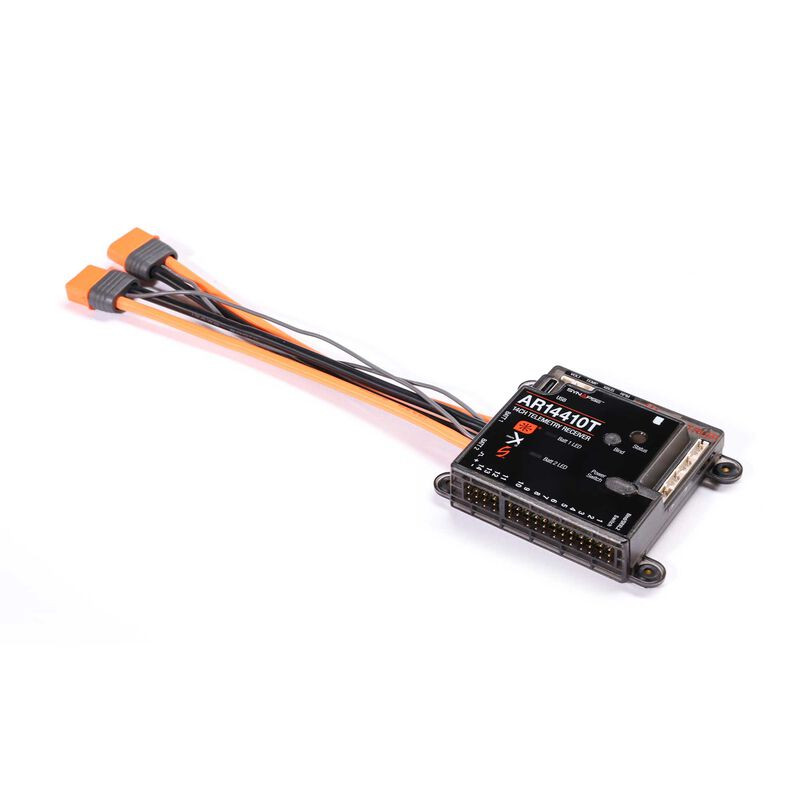

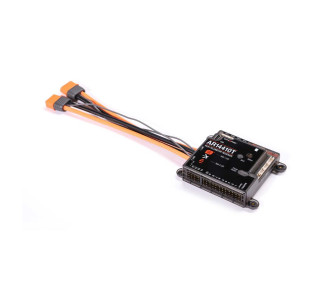

Spektrum AR14410T DSMX 14-channel PowerSafe receiver, Telemetry

Spektrum AR14410T 14-channel PowerSafe telemetry receiver features:

• Compatible with Synapse™ AS3X+/SAFE flight stabilization module (SPMAS6000, not included).
• Patented PowerSafe™ redundancy system with two 13 AWG battery cables with IC3 connectors. Perfect for power-hungry aircraft and high-current servomotor applications consuming up to 35A (maximum burst of 50A).
• Advanced programming allows easy adjustments to safety parameters, servo frame rate settings and much more
• Innovative power management system designed with a sleep mode allowing pilots to remotely switch on/off from the transmitter
• Regenerative servo support for any number of servos
• USB-C port for easy product registration and firmware updates
• 12 V compatible for use with 12 V servo applications (must be activated via advanced programming)
• Integrated battery capacity monitor automatically reports battery capacity used during flight, and can automatically reset when fully charged batteries are installed
• Integrated Black Box telemetry log automatically records all telemetry data when a Micro SD card is installed (Micro SD card not included)

• Integrated status LED provides useful start-up information, warnings and mode indicators
• Ready to use with Spektrum Smart ESC for single-wire telemetry data without the need for additional modules or links
• Receiver pack energy and voltage sensor and flight log telemetry data available without the need for additional sensors
• Long-range telemetry with integrated barometer to provide altitude and vario telemetry without additional modules
• The included soft switch allows servo power to be routed around the switch, so that if the switch fails for any reason, system power will not be interrupted
• Rigid rubber grommet mounts and minimalist labeling allow for very clean configurations of your model
• Capable of high-speed frame rates of 11 ms
• Linking is easier than ever, with four options for initiating the linking process
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion

NEW-GENERATION FLIGHT STABILIZATION

The AR14410T is compatible with the Synapse AS3X+/SAFE stabilizer module (not included), offering enhanced stability and control for your aircraft. The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by industry experts. The system is even easier to tune, and can be easily optimized for any type of aircraft you fly. Never again spend hours tweaking and fine-tuning until your aircraft is locked in. We were able to configure most aircraft in less than 5 minutes, including the first flight setup.

Key AS3X+ enhancements include:

• Stop Lock and Release Rate parameters
• Heading Hold improvements
• Improved gyro filtering
• Canard and thrust vectoring support

PATENTED POWERSAFE™ REDUNDANCY SYSTEM

The Spektrum™ AR14410T is the ultimate solution for powering power-hungry radio systems. In aircraft with multiple current-intensive servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between the two connected receiver batteries with true dual-battery redundancy. Each battery is isolated, and if one fails/short-circuits, the other will take over without fail.

INNOVATIVE BATTERY CAPACITY MONITOR

PowerSafe receivers feature dual battery capacity monitoring via telemetry when used with Spektrum AirWare transmitters. Activate the Auto Config function on your transmitter's telemetry page to display the capacity consumed by the receiver. The capacity used is stored flight by flight and is added until reset. Capacity can be automatically reset when the battery is charged, allowing easy monitoring of battery capacity.

STANDBY MODE

The AR14410T receiver features an advanced power management system designed with a sleep mode allowing pilots to remotely switch the transmitter on/off. This exciting new feature lets you power up your model's electronics at the touch of a button. No hatch manipulation or physical switches are required, and it's extremely convenient for a day in the field.

INTEGRATED "BLACK BOX" TELEMETRY RECORDING

When a Micro SD card is inserted in the receiver, during operation, flight information will be recorded in a file on the card, including flight log data, battery status and other telemetry data stored over time. If not deleted, older recorded data logs will be deleted, retaining the most recent logs. This can be a handy tool for examining flight data over time, which can be useful for performance diagnostics.

ADVANCED PROGRAMMING

You can configure the AR14410T wireless receiver, directly from any compatible Spektrum transmitter, via the advanced programming menu. No separate computer or mobile device is required for configuration and settings.

INTEGRATED BAROMETER

The Spektrum AR14410T receiver features a built-in barometer (integrated pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

MICRO-USB PORT

A user-friendly micro USB port is integrated into the receiver for easy access to firmware updates via the Spektrum PC Programmer application.

NUMEROUS TELEMETRY OPTIONS AVAILABLE

In addition to built-in telemetry sensors, the AR14410T supports a long list of Spektrum telemetry sensors and third-party telemetry accessories. Easily add powerful telemetry data tools to your model, such as GPS, speed sensors, engine speed and turbine ECU telemetry from supported jet turbine controllers.

Product Specifications
