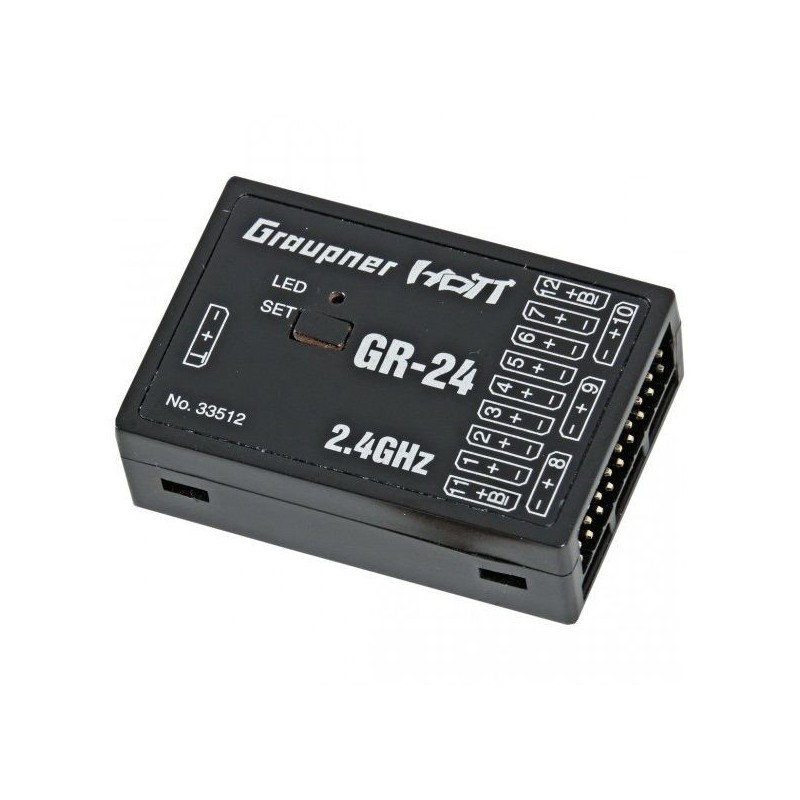

With the GRAUPNER HoTT technology in 2.4GHz the receiver has a new high frequency Hopping Telemetry Transmission module with the latest components and software. For reception the diversity antenna principle always takes the best received signal into account and always uses the antenna which was last used for reception for transmission. This ensures that it is always the best positioned antenna which transmits the telemetry data. Without any additional sensors, the parameters of receiver voltage, receiver temperature and signal strength are transmitted back to the transmitter. The use of up to 75 bands offers extreme operational reliability and is not sensitive to external interference. The wide operating voltage range of the receiver from 3.6 V - 8.4 V (operational down to 2.5 V) guarantees correct operation even with voltage fluctuations. Two LEDs indicate the operating status. The size and weight have been reduced. The sensitivity at the input of the receiver, and therefore the range, could be increased even more. Lateral connection for services. Failsafe, Hold, OFF and Standard functions (channel 1 Failsafe, all others in Hold mode) programmable.
Help us to offer you the best price on the product "Graupner GR-24 HoTT 12-channel 2.4GHz receiver"
To help us improve your experience on our site, we are always interested in hearing from you!
And offering you the best possible price is one of our priorities, so if you find one of our products cheaper elsewhere on a competing European site, please let us know by filling in the form below.
Programmable servo curves: linear, degressive and exponential
SUM Programmable signal at the output of the highest channel
Possibility of limiting and reversing servo travels also on the receiver
Failsafe, Hold and OFF programmable separately for each channel
Adjustable alarm thresholds for low voltage, high or low temperature
Servo test function
Technical data
Temperature range: -15 ... +70 °C Antenna length: 2x Draht 145 (Antenna 30) mm Total weight, approx.: 16 g Frequency: 2400 ... 2483.5 MHz Range, approx.: 4000 m Dimensions: 46 x 31 x 14 mm Modulation: 2.4 GHz FHSS Power consumption: 70 mA Supply voltage: (2.5) 3.6 ... 8,4 V
With the GRAUPNER HoTT technology in 2.4GHz the receiver has a new high frequency Hopping Telemetry Transmission module with the latest components and software. For reception the diversity antenna principle always takes the best received signal into account and always uses the antenna which was last used for reception for transmission. This ensures that it is always the best positioned antenna which transmits the telemetry data. Without any additional sensors, the parameters of receiver voltage, receiver temperature and signal strength are transmitted back to the transmitter. The use of up to 75 bands offers extreme operational reliability and is not sensitive to external interference. The wide operating voltage range of the receiver from 3.6 V - 8.4 V (operational down to 2.5 V) guarantees correct operation even with voltage fluctuations. Two LEDs indicate the operating status. The size and weight have been reduced. The sensitivity at the input of the receiver, and therefore the range, could be increased even more. Lateral connection for services. Failsafe, Hold, OFF and Standard functions (channel 1 Failsafe, all others in Hold mode) programmable.
