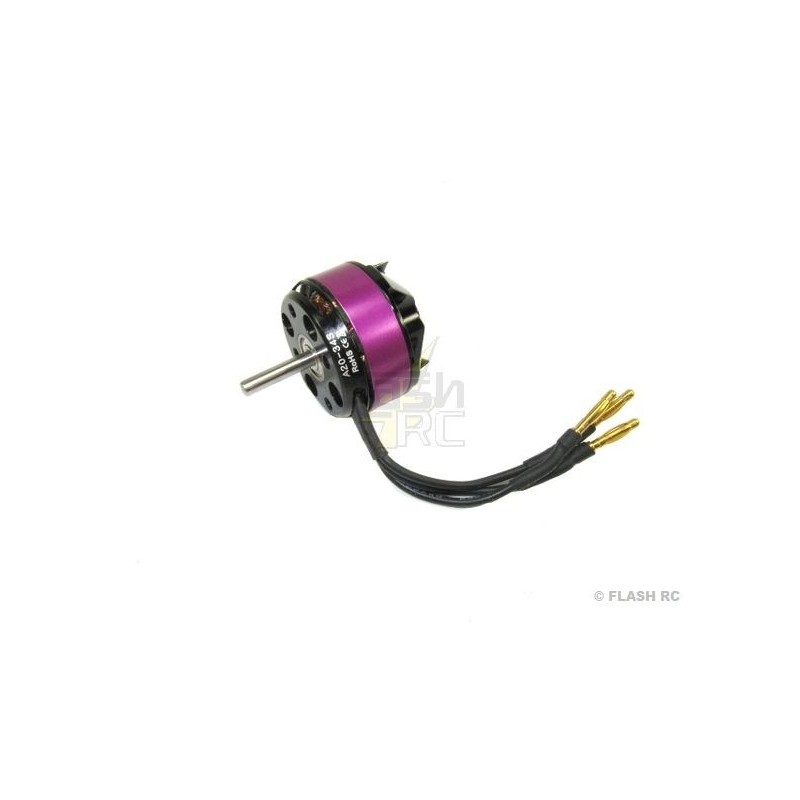

Hacker A20-34S brushless motor

The A20-34S Hacker is a small German quality brushless motor, specially designed for indoor or parkflyer aircraft up to 250g. The propeller can be attached either by using the motor shaft via the propeller adapter or by using the propeller saver integrated in the motor rotor.

Read more
€55.00
Quantity :
Stock available

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical data

  • Power : max. 100W (15s)
  • No-load current : 0.75A under 8.4V
  • Internal resistance : 0.147Ohm
  • Kv : 1500tr/min/V
  • Mass: 29g
  • Shaft diameter: 3mm
  • Recommended timing: 20°-25°.
  • Dimensions: Ø28x24mm
  • Recommended controller : 6A-10A
  • Recommended battery: 2S LiPo

* Recommended propellers

A20-34S Hacker

* Dimensions

A20-34S Hacker

Contents of delivery

  • A20-34S motor with soldered 2mm gold contacts
  • Propeller adapter 2mm/M6
  • Propeller adapter ring
  • Fixing cross
  • 2x spare shafts
  • Screws
102-97800002
  • Engine weight : from 100g to 599g
  • Motor power in Watts : 100
  • Revs/ minute Kv : 1500
  • Type of tree : standard
