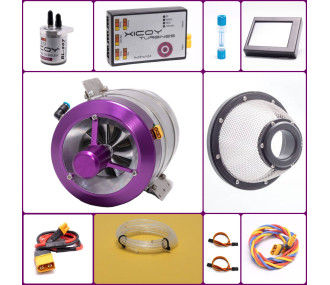

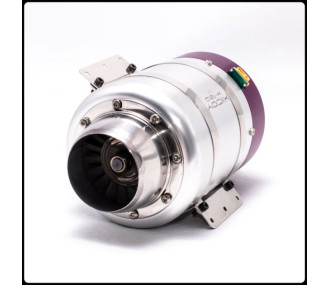

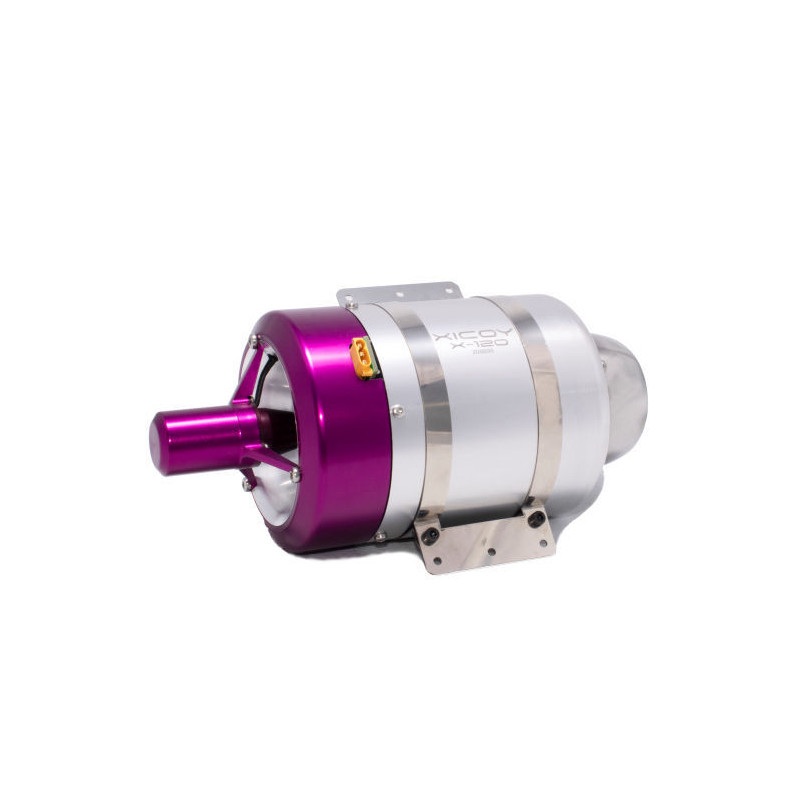

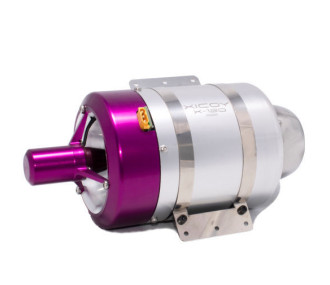

Turbine X160 Xicoy 7.65Kg-16.3Kg PRO Version

PRO version

Includes a miniature connection ECU and a color touchscreen terminal that can be placed anywhere on the model, connected via a standard servo cable, or disconnected and kept in the pocket, it is not required for normal operation. The color terminal includes a data logger that stores up to 2 hours of engine data for post-flight analysis. To use this function, it must be permanently installed in the model.

Technical specifications:

• Thrust: Continuously adjustable from 75 to 160N (36 Lbf, 16.3Kg )
• Size: 98mm diameter, 210mm long
• Weight: 1,127g motor only, 1,218g with FOD filter and mounting strap, 1,320g total installed weight without battery
• RPM range: 35,000 ... 140,000 RPM
• Empty thrust: 5.3N
• Fuel: Kerosene + 4% oil. Diesel is permitted but not recommended. Fuels containing biodiesel are not permitted.
• Fuel consumption: 430g/minute at 160N (530ml/min)
• Starting motor: Brushless high-speed starting motor
• Fuel pump: Digitally controlled brushless pump
• Telemetry: Jeti, FrSky and Futaba included, integrated into ProHub. An optional module (not included) enables use of MPX/Core and Hott.
• Service interval: 25 hours
• Recommended battery: 3s Lipo/2200mAh recommended. (3s Life compatible). Battery not included
• Other: Integrated sensors for ambient temperature and atmospheric pressure to automatically adjust motor performance.
