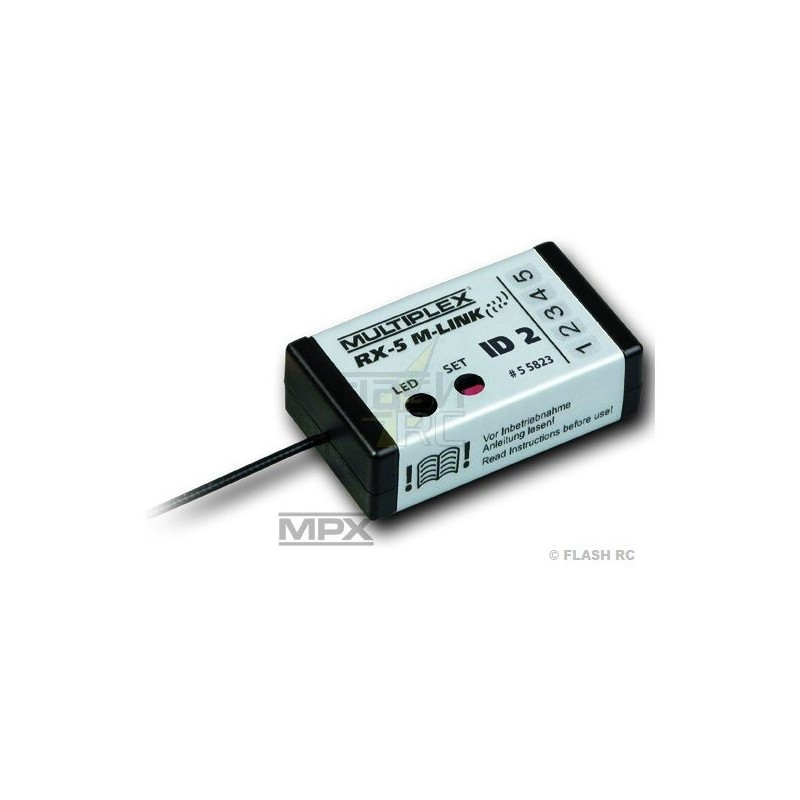

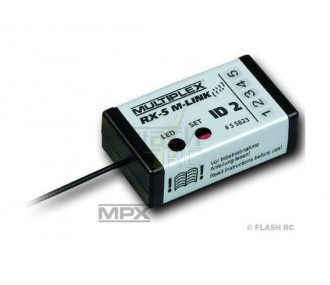

RX-5 M-LINK ID 2 Easy Star II receiver, 2.4 GHz Multiplex

Technical specifications

• Number of channels : 5
• Modulation : 2.4Ghz FHSS
• Supply voltage : 3.5V ... 9V
• Battery type : 4-6 cells NiXX, 2S LiXX
• Operating temperature : -20°C ... + 55°C
• Dimensions: 34 x 19.5 x 11 mm
• Weight: approx. 7g
• Use : Helicopter up to 80 cm rotor diameter, Electric or thermal model up to 1.30 m wingspan, Glider or motorglider up to 2m wingspan, Radio controlled cars, Radio controlled boats
• For the Smart X: programming of the Easy Star II


General operation

Our SMART SX beginners' transmitter recognizes the memory to be activated via the receiver ID. This means that when a model is changed, the model-specific settings stored in the SMART SX transmitter are automatically activated (e.g. trim position, servo direction of rotation, Dual-Rate). Checks and verifications of the direction of rotation of the servos or a new readjustment of the trim positions, as was known with entry-level transmitters, are therefore no longer necessary.

The following receivers / IDs are available:

ID1 (active SMART SX Model Memory 1)

ID2 (active SMART SX Model 2 memory for EasyStar II)

ID3 (active SMART SX Model 3 memory for EasyGlider PRO)

ID5 (active SMART SX Model 5 memory for RAZZOR)

ID6 (active SMART SX Model 6 memory for FunCopter)

ID21 (active SMART SX Model 21 memory)

ID22 (active SMART SX Model memory 22)

The data set of a model can be overwritten on the transmitter side (SMART SX), or adapted so that the receivers are versatile.
.

The RX-5 ID receivers are compatible with all other M-LINK transmitters even if they do not have ID recognition and correspond, in this case, to an RX-5 light M-LINK 2.4 Ghz receiver.
