Pressure sensor ADV 30bar FrSky

The FrSky ADVANCE (ADV) series features complete sensor types and enhances the performance and capabilities of the original sensor line. All ADV sensors fully support the FBUS protocol and are also compatible with S.Port. Using the FBUS protocol, ADV sensors can be directly paired with FBUS-compatible receivers, further simplifying configuration.

The ADV PS30 pressure sensor can be used to measure the air pressure in the air system of your model. With the ADV PS30 pressure sensor, the air pressure in your system is transmitted to the remote control. You then have the ability to trigger alarm thresholds and actions based on the air pressure information, such as alarms for falling pressure, landing gear extension if lower warning thresholds have been exceeded, etc.

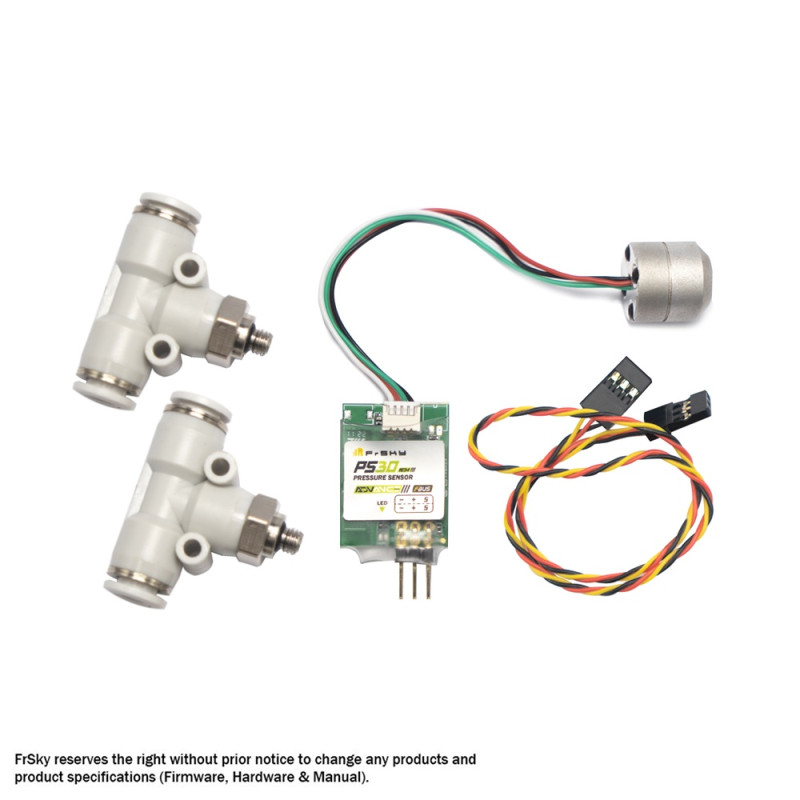

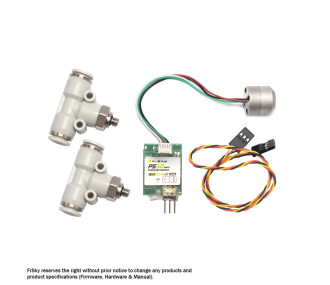

The PS30 PRESS pressure sensor module connects to your existing system using the supplied 4mm/6mm diameter T-fitting (up to 15 bar). Please note that the sensor can measure up to 30 bar (435 psi) with an appropriate T-fitting.

Features:

• Dimensions: 37*20*7mm (L×W×H)
• Weight: 2.9g
• Operating voltage: 4-10V
• Current consumption: 5mA@5V
• Pressure measurement: Measuring range: 0-30Bar (435psi) / Over pressure: 50Bar
• Safety pressure (with the supplied T): 15Bar
• Compatible with FBUS/S.Port protocol
