The A20-LN series has been specially developed for glider models with narrow fuselages. Since the fuselage becomes significantly wider a few centimeters after the motor mount, a small diameter outrunner can be used in direct drive. This small, weight-optimized high-end motor, weighing only 90 g, is often used in glider models up to 1.5 kg.
The A20-12 XL-LN EVO kv1039 also fits perfectly in motor and sport aircraft up to approx. 1.0 kg take-off weight when things get tight under the cowling.

Specifications
Power range [W] 300
Poles 14
Turns 12
Idle current (I0) at 8.4V [A] 1.2
Internal resistance (Ri) [Ohm] 0.075
Recommended duty cycle [°] 20-25
Recommended duty cycle [kHz] 8
No-load speed per volt (kv) 1039

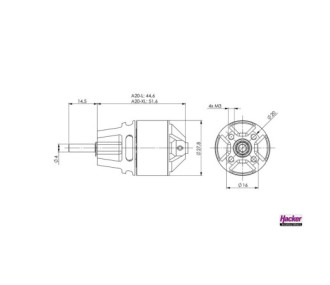

Dimensions and weights
Weight [g] 90
Length [mm]/[in] 51,6
Outer diameter [mm]/[in] 27,8
Shaft diameter [mm]/[in] 4
Scope of delivery
Promoters: No
Mounting cross: No
Gold plug mm (soldered) 3,5
Rear mounting possible: No
Front mounting possible: No
