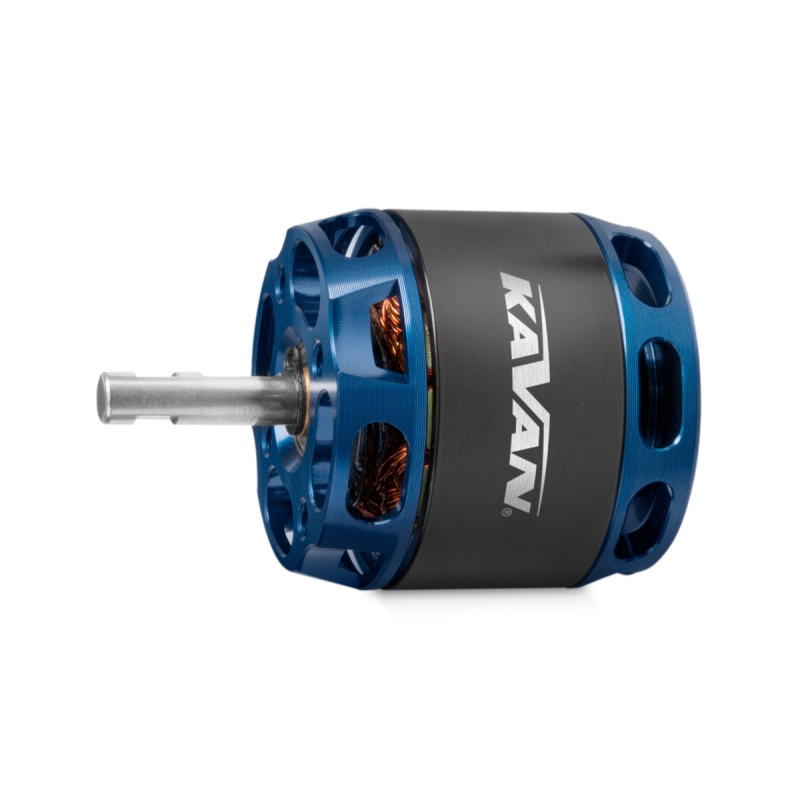

Brushless electric motor for model aircraft: 800g glider, 700g trainer, 600g acro, 400g 3D, KV1100 RPM/V, input voltage 3-4S Lixx. Shaft of 4,0 mm. Alternative designation based on stator size: 2212-1100.
Power supply for LiXX 3 - 4 cells
RPM/V [ot./min/V] 1100
Maximum power (180 s) [W] 350
Internal resistance [mOhm] 75
Open circuit current (při 10 V) [mA] 850
Maximum peak current (180 s) [A] 25
Diameter [mm] 28.8
Length [mm] 28
Celková length [mm] 44.5
Shaft diameter [mm] 4
Weight [g] 60
Number of poles 14
Time [°] 20 - 25
ESC [A] 25 - 35
Glider weight (up to) [g] 800
Trainer weight (up to) [g] 700
Weight of the acrobat (up to) [g] 600
3D weight (to) [g] 400
