Brushless electric motor for model aircraft: glider 1600g, trainer 1500g, acro 1300g, 3D 1050g, KV1150 RPM/V, input voltage 3-4S Lixx. Shaft of 5.0 mm. Alternative designation based on stator size: 2814-1150.
Power supply for LiXX 3 - 4 cells
RPM/V [ot./min/V] 1150
Maximum power (180 s) [W] 800
Internal resistance [mOhm] 26
Open circuit current (při 10 V) [A] 1.8
Max. peak current (180 s) [A] 55

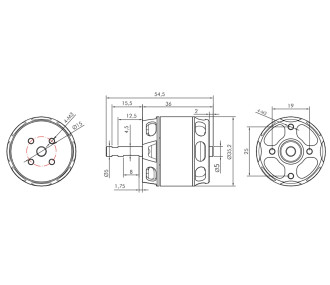

Diameter [mm] 35.2
Length [mm] 34
Celková length [mm] 54.5
Shaft diameter [mm] 5
Weight [g] 108
Number of poles 14
Time [°] 20 - 25
ESC [A] 60 - 70
Glider weight (up to) [g] 1600
Weight of the trainer (up to) [g] 1500
Weight of the acrobat (up to) [g] 1300
3D weight (to) [g] 1050
