- Out-of-Stock

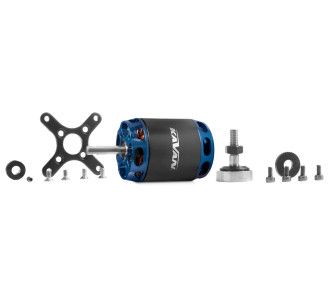

Brushless electric motor for model airplanes: glider 2600g, trainer 2500g, acro 2300g, 3D 1400g, KV900 RPM/V, input voltage 3-4S Lixx. Shaft of 5.0 mm. Alternative designation based on stator size: 2826-900.
Power supply for LiXX 3 - 4 cells
RPM/V [ot./min/V] 900
Maximum power (180 s) [W] 820
Internal resistance [mOhm] 24
Open circuit current (při 10 V) [A] 2.2
Maximum peak current (180 s) [A] 57
Diameter [mm] 35.2
Length [mm] 47
Celková length [mm] 69.5
Shaft diameter [mm] 5
Weight [g] 175
Number of poles 14
Time [°] 20 - 25
ESC [A] 60 - 70
Glider weight (up to) [g] 2600
Trainer weight (up to) [g] 2500
Weight of the acrobat (up to) [g] 2300
3D weight (up to) [g] 1400
