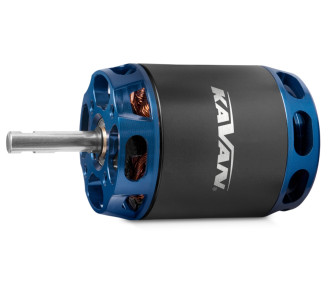

Brushless electric motor for model aircraft: 3300g glider, 3300g trainer, 2800g acro, 2200g 3D, KV570 RPM/V, 4S Lixx input voltage. Shaft of 5.0 mm. Alternative designation based on stator size: 3530-700.
Power supply for LiXX 4 cells
RPM/V [ot./min/V] 700
Maximum power (180 s) [W] 2013
Internal resistance [mOhm] 13.5
Open circuit current (při 10 V) [A] 2.45
Maximum efficiency current (η>78%) [A] 7 - 28
Maximum peak current (180 s) [A] 117
Diameter [mm] 43
Length [mm] 53
Celková length [mm] 75
Shaft diameter [mm] 5
Weight [g] 302
Number of poles 14
Time [°] 20 - 25
ESC [A] 120 - 160
Glider weight (up to) [g] 3300
Trainer weight (up to) [g] 3300
Weight of the acrobat (up to) [g] 2800
3D weight (up to) [g] 2200
