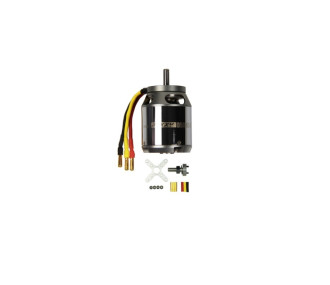

ROXXY BL Outr. D50-65-07 400kv

14-pole BL external rotor motor Ø 50 mm

ROXXY® brushless motors with neodymium magnets are state-of-the-art electric drives.
Particularly with external-rotor motors, which do not require a gearbox, high-torque, high-efficiency motors are available in a wide performance range. Due to their design, external rotor motors can drive large propellers without gears.
This makes them ideal for direct drive.
- High efficiency thanks to maximum copper filling and the use of high-quality neodymium magnets.
- Quiet operation thanks to large precision ball bearings.
- Can be mounted on both sides
Third ball bearing ROXXY® -BL D and CA series external-rotor motors are equipped with triple ball bearings. To improve concentricity and precision, a third, so-called Thin-Ring Ball Bearings are used. This prevents the motor bell from twisting under load and ensures smooth motor operation.

Suitable for:

Technical data

Motor type: Brushless rotating cage

Motor diameter (mm): 50

Revolutions per volt (Kv): 400

Motor power (Watt): 1500

Motor shaft diameter (mm) : 6.00

Min. voltage (V) : 15

Max. voltage (V) : 30
