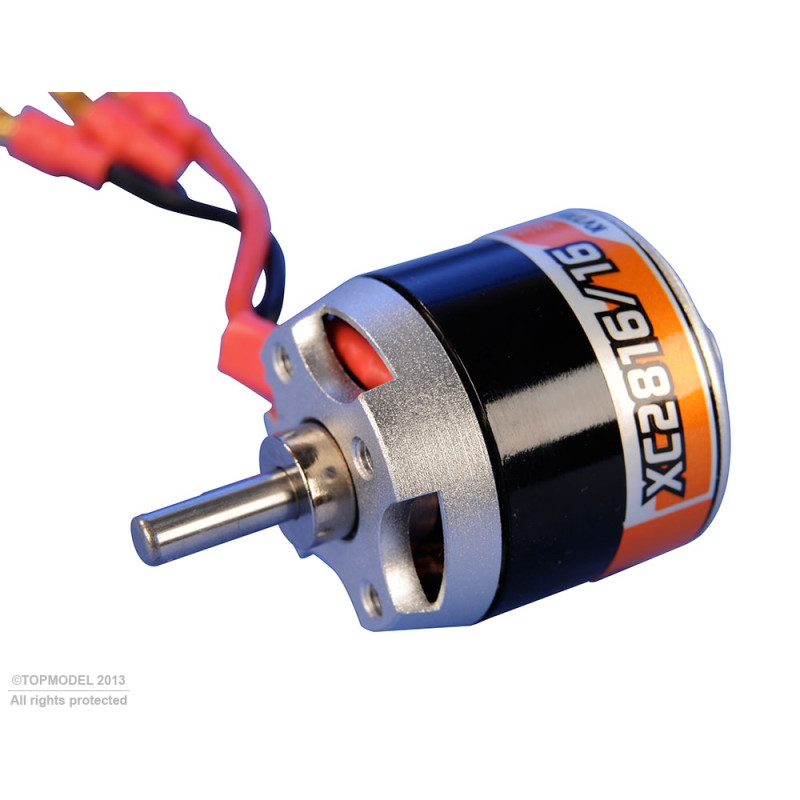

XPower XC2816/16

OUTRUNNER brushless performance motor

Format 500

XPower XC2816/16

Technical specifications:

• Recommended number of cells: 6-14 or 2-4 LiPo
• Revolutions per Volt: 1100
• Max. current: 18.7A
• Internal resistance: 76mOhm
• Dimensions: Ø28x33mm
• Motor shaft diameter: 4mm
• Weight: 72g
• Recommended propellers: 8x6-10x7

Recommended controller: XPower XREG30

Measurements:

• Propeller: APC E 10x5
• Controller: Xpower REG 30
• Battery: Hot Lips 2200 3S1P
• Speed: 8500 rpm
• Consumption: 19.5A

Measurements:

• Propeller: APC E 10x7
• Controller: Xpower REG 30
• Battery: Hot Lips 2200 3S1P
• Speed: 7700 rpm
• Consumption: 22A

Measurements:

• Propeller: APC E 9x4,5
• Controller: Xpower REG 30
• Battery: Hot Lips 2200 3S1P
• Speed: 9300 rpm
• Consumption: 15A

For models such as FREDY, etc.

Supplied complete with 3.5mm gold connectors, radial mount and propeller adapter.
