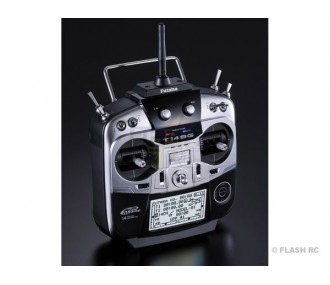

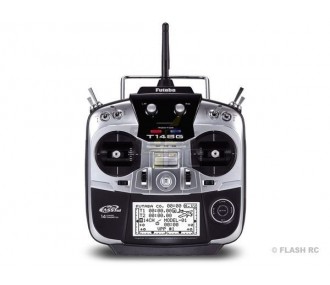

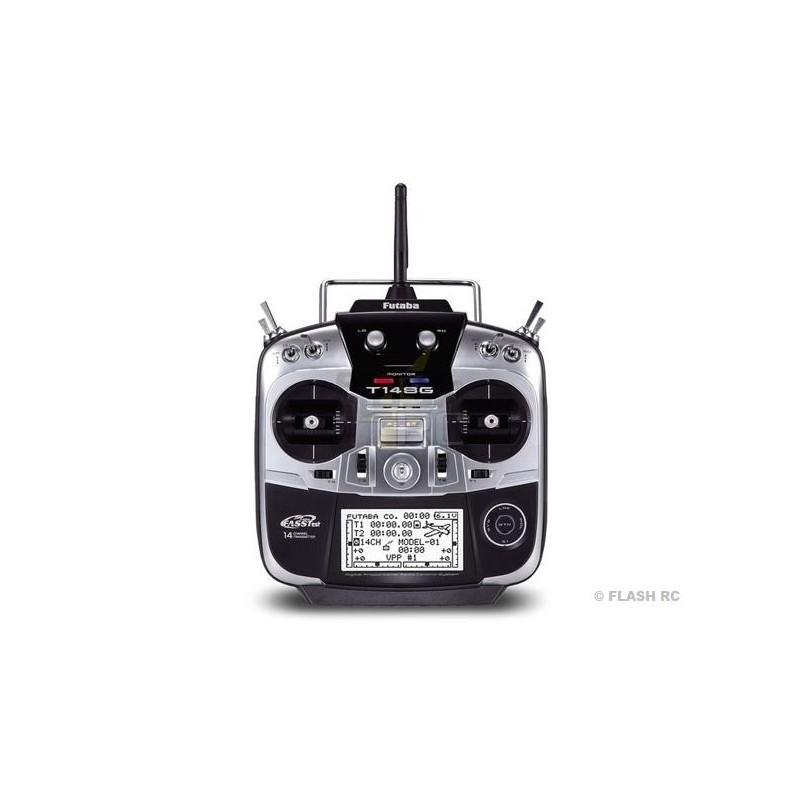

Radio Futaba 14SG 2.4Ghz Lipo Battery + R-7008SB Mode 1

Kit Contents

• Transmitter 14SG in MODE 1 (left stick: elevator/drift, right stick: motor, ailerons)
• R7008SB receiver
• 7.4V 2800mAh LiPo battery for the transmitter
• Mains charger
• Neck strap
• Switch

Main features

• FASST mode compatible FASST, S-FHSS
• Futaba telemetry system compatible
• 14 channels: 12 proportional / 2 switches
• Planes, gliders and helicopters mode
• Free update via internet
• Card compartment (SD: 32MB-2GB; SDHC 4GB-32GB)
• Tx battery alarm
• 7 languages including French
• 30 models in memory
• Adjustable handle tension
• Handles on ball bearings
• 4 types of vibration alarm
• Audio jack for telemetry
• Data transfer from models
• S-BUS compatible receiver
• 10 character model and user name
• 128x64 dot LCD display
• Direction of operation of switches
• Transmitter data
• Radio usage clock

Linkage" menu functions

• Servo test and display
• Training mode
• Model type management
• Management of the S-FHSS or FHSS mode
• Assignment of functions on the channels
• Servo neutral adjustment
• Servo speed adjustment (S-bus)
• Setting of servo operating direction
• Setting the FailSafe function on all 14 channels
• Adjustment of servo travel
• Setting the motor cut-off
• Stopwatch and countdown timer
• Digital trimmers adjustment

Aircraft and glider" menu functions

• 7 programmable mixes, 2 of which have 5-point curves
• Throttle curve adjustment
• Aileron adjustment
• Flap adjustment
• Mixing ailerons and curved flaps
• Mixing ailerons and nose brake
• Mixing ailerons and steering
• Mixing steering and ailerons
• Steering and elevator mix
• Mixing elevator and flaps
• Mixing flaps and elevator
• Neutral Shift
• Airbrake adjustment
• Gyroscope management
• V-tail settings
• Elevator differentials (Delta wings)
• Engine mixing
• Needle adjustment
• 5-point throttle curve
• idle down

Helicopter" menu options

• 8 swashplate types (H1, H2, H3, H4, HR3, HE3, HN3, H4X)
• 6 flight conditions
• Collective pitch curve setting (5 points and 5 curves)
• Throttle curve setting (5 points and 4 curves)
• Throttle adjustment for auto rotation
• Swashplate position correction
• Throttle adjustment
• Mixing of pitch and direction
• Flybarless gyro management
• Gouvernor (700-3500 rpm)

Telemetry

• Data display
• Transmitter sound or vibration alarm
• Display and alarm of the receiver battery voltage with the R7008SB receiver
• Display and alarm of the propulsion battery voltage (EXT-VOLT) (sensor required)
• Temperature display and alarm (TEMP) (sensor required)
• Display and alarm of motor rotation speed (RPM) (sensor required)
• Altitude (ALTITUDE) display and alarm (sensor required)
• Variometer (VARIO) display and alarm (sensor required)
• Distance and speed display and alarm (GPS sensor required)
