Swift S1 approx.3.73m ARF TOPModeL CZ

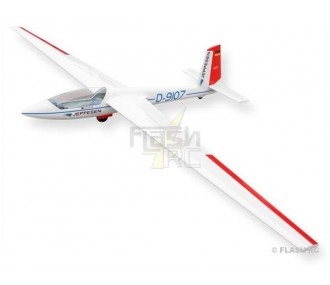

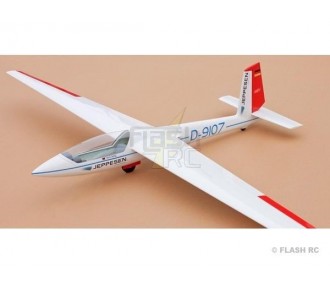

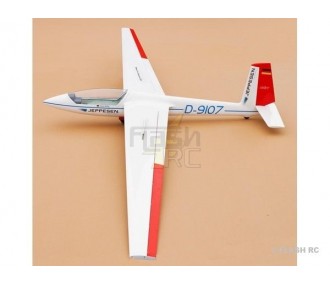

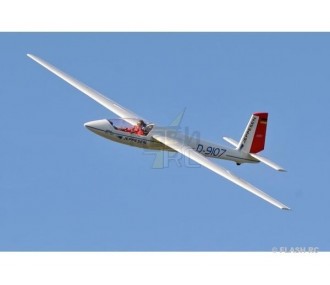

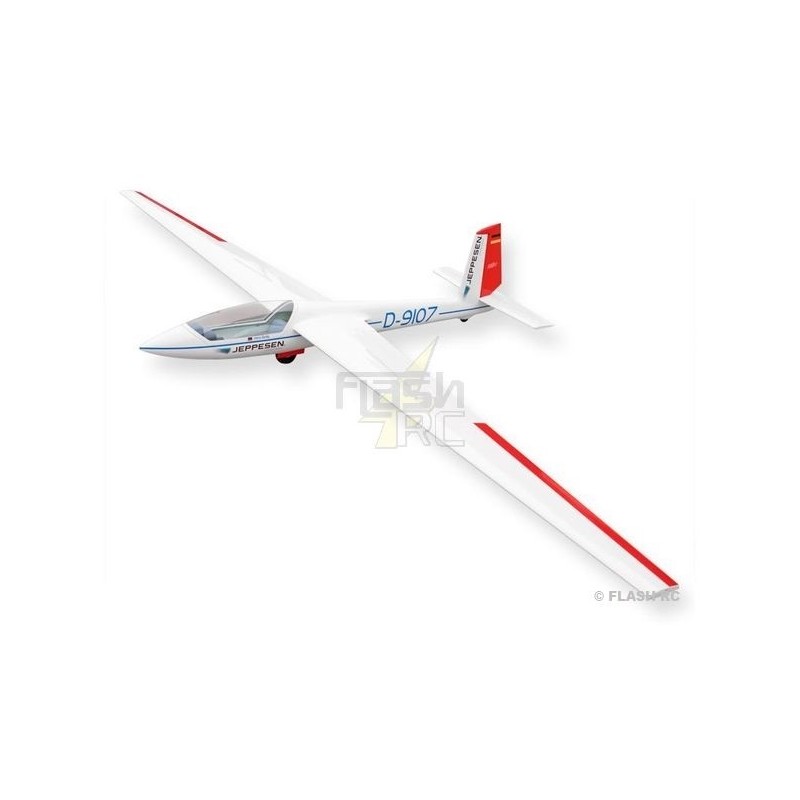

The Swift S1 Topmodel CZ is a 3.73m semi-model in 1/4th scale, with a beautiful and elegant construction. Like the size, the Swift S1 is an excellent aerobatic glider, but it is also capable of climbing in calm weather thanks to its wing profile.the wings, made of samba-covered polystyrene, are equipped with curved flaps and speed brakes installed as standard.the fuselage is molded in white gelcoated fiberglass.this glider is motorizable with an XC5030/14 LS engine, but the motor torque is not supplied.

Read more
€859.00
Quantity :
Last items in stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical specifications

* Details in pictures

Topmodel CZ Swift S1Topmodel CZ Swift S1 De Luxe

Topmodel CZ Swift S1Topmodel CZ Swift S1 De Luxe

* Specifications

  • Wingspan: 3730mm
  • Length : 1740mm
  • Weight: 5.9 - 6.8 Kg
  • Wing area: 85.2dm² (85.2 sq. ft.)
  • Wing loading : 68 - 79.8 g/dm²
  • Wing profile : HQ 1.5-12
  • RC functions : elevator, fin, ailerons, flaps, speedbrakes, retractable gear, tow hook

Required components

  • 4x micro servos HS225MG or HS5245MG (ailerons and flaps)
  • 1x micro servo HS225MG or HS5245MG (elevator)
  • 1x standard servo HS485HB (rudder)
  • 2x micro servo HS82MG (airbrakes)
  • 1x standard servo HS485HB (retractable gear)
  • 1x standard servo HS645MG (tow hook)
  • 1x retractable gear
  • 1x tow hook
  • 1x NiMh 4.8V to 6.0V or LiFe 6.6V receiver battery
  • 1x charger
  • 1x radio control/receiver set 8 channels or more

Contents of the kit

  • White gel-coated fiberglass fuselage
  • Depth with hinged flap
  • Drift flap in place
  • Polystyrene wings, samba-covered and Oracovered with AF
  • Aileron flaps installed
  • Bucket
  • Canopy to be glued
  • Carbon wing key Ø16mm
  • Stickers
  • Small accessories
  • Assembly plan
213-02099
  • Span in meters : 3,73
  • Type of aircraft kit : Kit to equip
