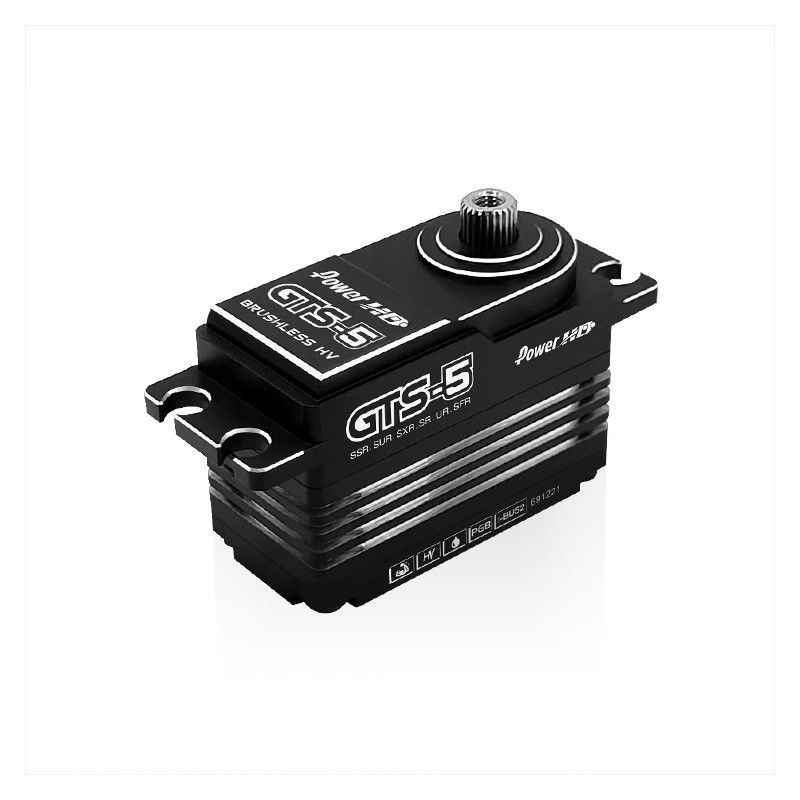

Servo GTS5 Low Profile Brushless Aluminum Case HV (50kg/0.08s) Power HD

PowerHD GTS-5 HV CNC Brushless Digital Servo 50.0KG/0.08sec@8.4V

*Supports the i-BUS2 protocol from FLYSKY radios

servo parameter adjustment / data logging / warning / and other functions

*Supports high-speed mode for branded radios

Noble NB4 Pro Modes: NOR / SR / SFR

Futaba Modes: NOR / SR / UR

SANWA Modes: NOR / SHR / SSR / SUR / SXR

*Supports the Power HD PG-CB63 programming box

*Four-pole brushless motor

high performance / long lifespan / heat resistant / faster response

• Torque (6.0V): 36.0 kg-cm / (499.9 oz/in)
• Torque (7.4V): 42.0 kg-cm / (583.3 oz/in)
• Torque (8.4V): 50.0 kg-cm / (694.4 oz/in)
• Speed: 0.11 sec (6.0V) / 0.09 sec (7.4V)
• Speed: 0.08 sec (8.4V)
• Operating voltage: 6.0 ~ 8.4 Volts DC
• Weight: 63 g (2.22 oz)
• Bearing type: Ball bearing x 2
• Motor type: Brushless motor
• Gear type: 7075+steel
• Operating temperature: -20~60°C
• Working frequency: 1520 / 1666hz
• Size: 41.0 x 20.0 x 29.0 mm (1.61 x 0.79 x 1.14 in)
• Maximum current: 7.5A
