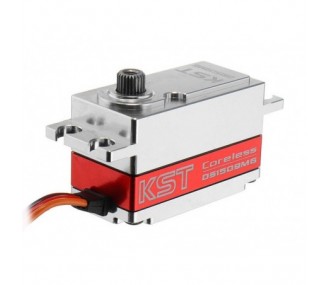

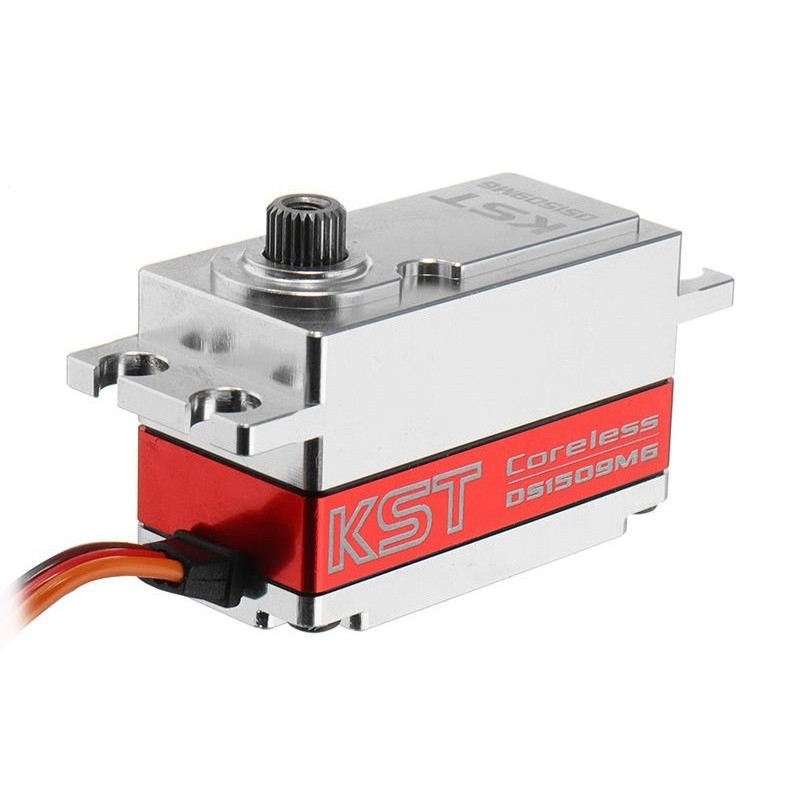

KST DS1509MG HV low profile servo (55g, 12.8kg.cm, 0.09s/60°)
153-DS1509MG
The KST DS1509MG is a powerful digital servo with aluminum housing and metal gears, all with double bearings! Delivered with original rudder pedals and mounting screws.
Read more
Technical specifications
- Dimensions : 40.50 mm x 20 mm x 25.4 mm
- Torque (6.0v/7.4v) : 10.7 Kg.cm/12.8 Kg.cm
- Speed (6.0V/7.4V) : 0.08 sec/60° / 0.09 sec/60°
- Power supply voltage : 6.0-7.4V
- Weight : 55g
- Max. frequency 333Hz
- Pulse width : 1520us
- Coreless motor
- Double bearing
- Metal gears
153-DS1509MG
Thickness in mm (Servos)
Torque in kg.cm (servos)
Speed sec / 60° (servos)
Pinions (servos)
Bearing (servos)
Technology (sevos)
HV (servos)
Weight in g (servos)
