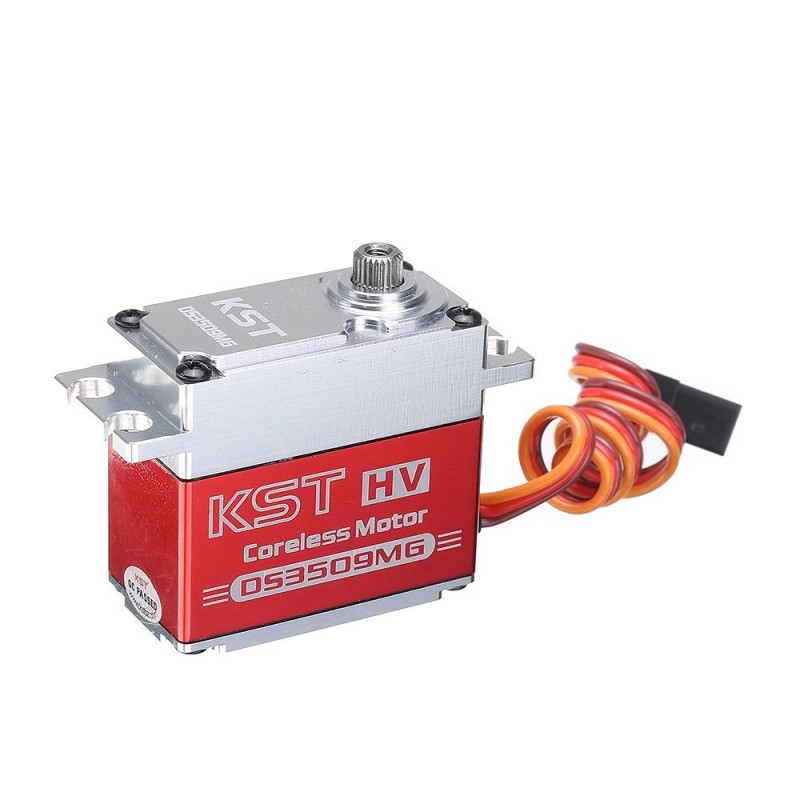

Standard servo KST DS3509MG HV (78g, 32kg.cm, 0.13s/60°)
153-DS3509MG
The KST DS3509MG servo is a powerful digital HV servo (2S LiPo powered) with an aluminum housing with metal gears, all mounted on a double bearing!
Read more
Technical specifications
- Dimensions : 40.50 mm x 21 mm x 38 mm
- Torque (6.0v/7.4v) : 30 Kg.cm/32 Kg.cm
- Speed (6.0V/7.4V) : 0.14 sec/60° / 0.13 sec/60°.
- Power supply voltage : 6.0-8.4V
- Weight : 78g
- Max. frequency 333Hz
- Pulse width : 1520us
- Coreless motor Ø20mm
- Double bearing
- Metal gears
- JR socket
153-DS3509MG
Thickness in mm (Servos)
Torque in kg.cm (servos)
Speed sec / 60° (servos)
Pinions (servos)
Bearing (servos)
Technology (sevos)
HV (servos)
Weight in g (servos)
