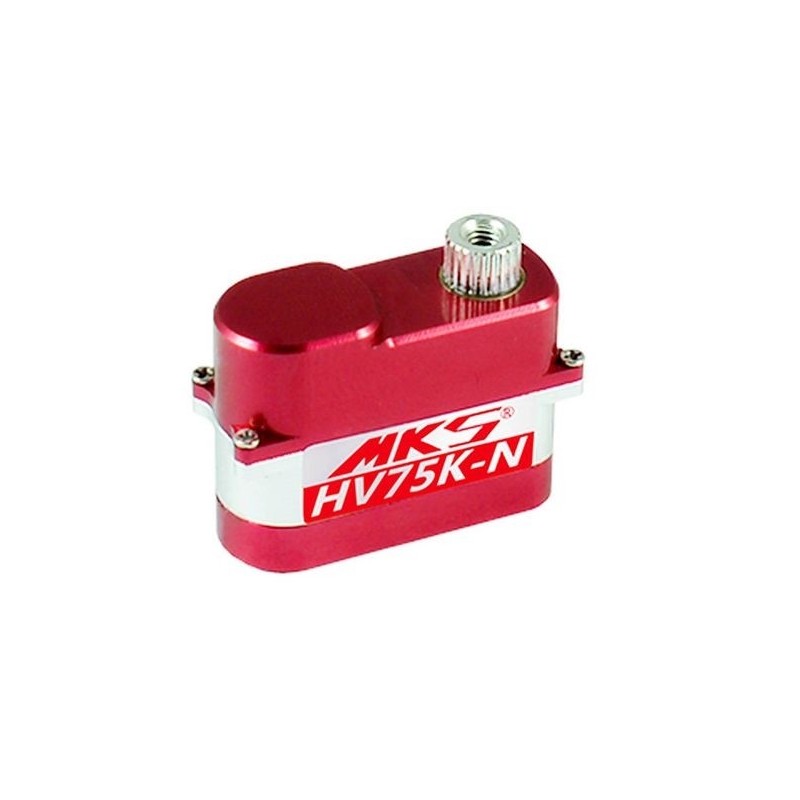

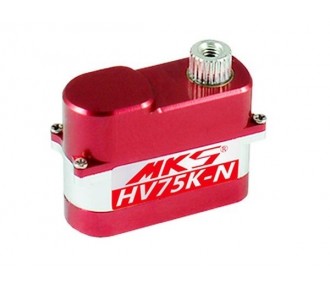

Digital metal servo HV75K-N 9mm Mks

Digital metal servo HV75K-N 9mm Mks

128-S0022008
Add to my favorites Remove from my favorites

New HV75K-N special F3K servo, HV version of the DS75K, without the support legs for a mounting where the space is reduced.
Very light (7,5gr) and thin (9mm), this servo is nevertheless powerful (3,3Kg/cm) of very high quality for the most demanding.

Moreover, the HV75K-N accepts a wide range of voltage, and has been designed to work with both 1S LiPo and 2S!

FLASH RC, authorized distributor MKS for France offers this micro servo very high quality that will be particularly well suited for hand-launched gliders type F3K or racers, F5D.

Read more
€72.90
Quantity :
Last items in stock

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical characteristics

  • Dimensions: 23 X 9 X 17.9 mm
  • Voltage range : 3.7 ~ 8.2 V DC Volts (supports 1S and 2S LiPo)
  • Torque : 1.4Kg.cm (3.7V), 2.3Kg.cm (6.0V), 2.8Kg.cm (7.4V)
  • Speed : 0.21s/60° (3.7V), 0.13s/60° (6.0V), 0.10s/60° (7.4V)
  • Pulse width/maximum operating frequency: 1520μs / 333hz
  • Dead zone : 0.001ms (Default)
  • Double bearing
  • Coreless motor
  • 7075 Chrome-Titanium gears
  • Aluminum housing

128-S0022008
  • Thickness in mm (Servos) : 9
    531
  • Torque in kg.cm (servos) : 2.8
  • Speed sec / 60° (servos) : 0.1
  • Bearing (servos) : yes
  • Technology (sevos) : Digital
  • HV (servos) : yes
  • Weight in g (servos) : 7.5
