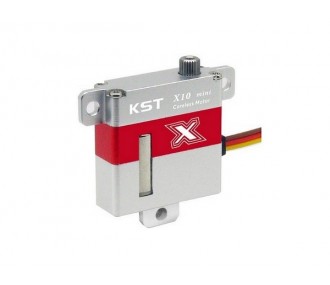

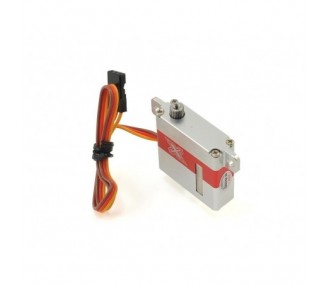

Servo wing KST X10 Mini HV 10mm (23g 7.5kg.cm, 0.09s/60°)
  • Servo wing KST X10 Mini HV 10mm (23g 7.5kg.cm, 0.09s/60°)
  • Servo wing KST X10 Mini HV 10mm (23g 7.5kg.cm, 0.09s/60°)
  • Servo wing KST X10 Mini HV 10mm (23g 7.5kg.cm, 0.09s/60°)

Servo wing KST X10 Mini HV 10mm (23g 7.5kg.cm, 0.09s/60°)

153-X10-MINI

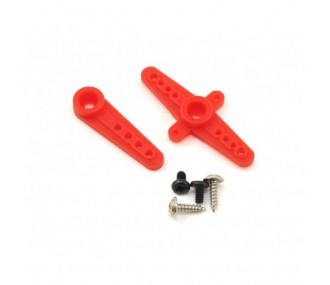

The KST X10 mini is a 5mm shorter version of the KST X10 version.this servo has the same dimensions as a KST DS135 MG but can be used with 2S Lipo.this servo will be perfect as a wing servo.delivered with rudder pedals and mounting screws.the servo is delivered with two red plastic rudder pedals, a single one (4 holes from 10 to 20mm), and a double one (4 holes from 8 to 15mm on both sides of the center)
Read more
€39.00

Volume discounts

Quantity Unit discount You Save
2 €0.70 Up to €1.40
4 €1.40 Up to €5.60
In stock – available immediately

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical specifications KST X10 Mini

  • Dimensions : 30 mm x 10 mm x 30 mm
  • Torque (6.0V/ 7.4V/ 8.4V) : 5.5 Kg.cm / 6.8 Kg.cm / 7.5Kg.cm
  • Speed (6.0V/ 7.4V/ 8.4V) : 0.13sec/60° - 0.11sec/60° - 0.09 sec/60°
  • Power supply voltage : 6.0 - 8.4V
  • Weight : 23g
  • Coreless motor
  • Double bearing
  • Metal gears
153-X10-MINI
Thickness in mm (Servos)
Torque in kg.cm (servos)
Speed sec / 60° (servos)
Pinions (servos)
Bearing (servos)
Technology (sevos)
HV (servos)
Weight in g (servos)
