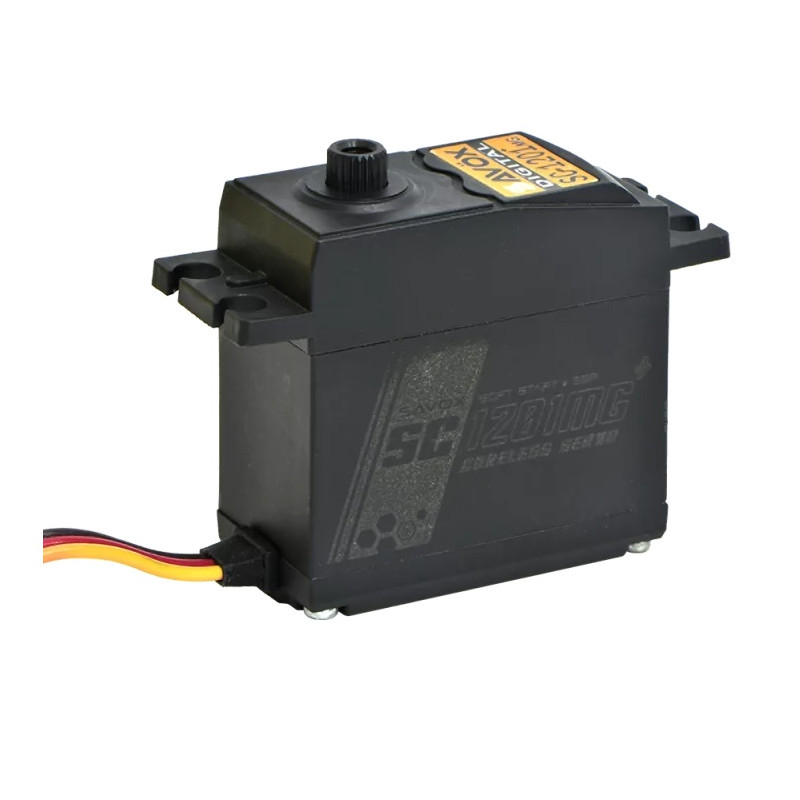

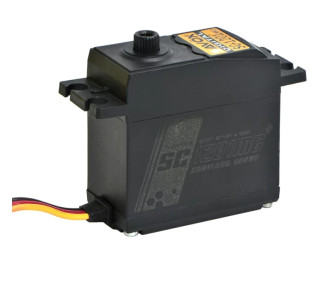

Savox SC-1201MG standard digital servo (69g, 25kg.cm, 0.12s/60°)
  • Savox SC-1201MG standard digital servo (69g, 25kg.cm, 0.12s/60°)
  • Savox SC-1201MG standard digital servo (69g, 25kg.cm, 0.12s/60°)

Savox SC-1201MG standard digital servo (69g, 25kg.cm, 0.12s/60°)

191-SC-1201MG+

This digital servo is suitable for type 30 aircraft.SC version (Servo Car): Servo designed for cars with a gearbox backlash slightly higher than the SA versions, but less than 0.5°.Equipped with a lock protection, reducing the power in case of over consumption at the stop (protection that can be used on glider retractors).

Read more
€61.90
€59.54
In stock – available immediately

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical specifications

  • Dimensions (mm): 40.7X20X39.4
  • Weight (g): 69
  • Speed: 0.15 sec/60° (4.8V), 0.12 sec/60° (6.0V)
  • Torque: 20 Kg.cm (4.8V), 25 Kg.cm (6.0V)
  • Frequency : 333 Hz
  • Pulse length : 1500 µs
  • DC motor
  • Pigons
  • Double bearing
  • Nylon housing
  • Output pinion : 25 teeth
