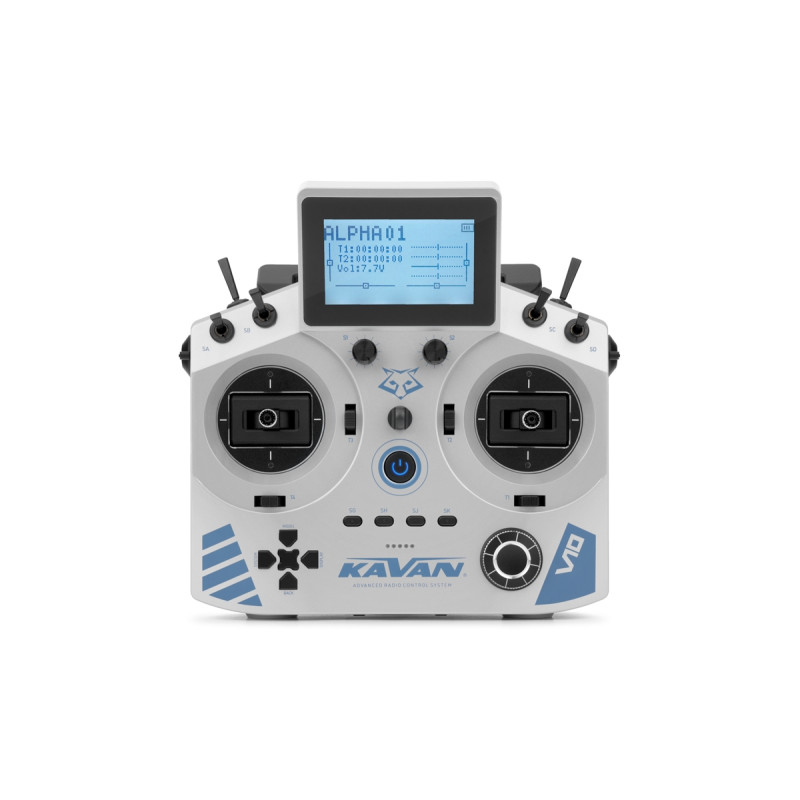

The KAVAN V10 is an intermediate 24-channel RC set using a 2.4 GHz ACCESS or ACCST transmission system with full telemetry support. It offers an exceptional response time of up to 4 ms and a range of up to several tens of kilometers. The operating system is the brand new ECOS, lightweight and streamlined, which simplifies operation, setup, and handling. The V10 can be paired with a wide range of KAVAN or FrSky receivers, with or without telemetry, featuring classic PWM and serial outputs.
The V01 is an affordable radio with advanced functions, making it the perfect first full-featured transmitter for controlling a wide variety of airplanes as well as helicopters and multirotors. It can also be easily configured for boats or land models. This is made possible by a range of functions and mixes available in the ECOS operating system.
For control, it is equipped with a pair of precise gimbals measured by Hall effect sensors. Additional functions are managed via 4 three-position switches, 2 two-position switches (including 1 momentary), 2 rotary knobs, 2 rear momentary buttons, 1 multifunction rotary knob, 4 programmable buttons, 5 navigation buttons, and 4 digital trims. The layout and ergonomics of the controls are inspired by the proven, extensively tested design of the V15 transmitter.
The transmitter case is robust and fits perfectly in the hand. The textured surfaces on the sides and back provide a firm, comfortable, and secure grip, with all controls within easy reach. Of course, the force of the centering springs and the ratchet system can be adjusted to fine-tune the mode and responsiveness according to personal preferences.
The built-in flash memory can store up to 32 models. A USB-C connector allows access to the memory and is also used for charging or connecting to an RC simulator. Charging of the 2S 2600 mAh Li-ion battery is managed by a built-in balancer.
All KAVAN transmitters are covered by a 2-year extended warranty.
Features
- Up to 8 flight modes for perfect control of your model in all conditions
- Full telemetry with data transfer from a wide range of sensors
- Memory for up to 32 models
- 2 short three-position switches
- 2 long three-position switches
- 2 long two-position switches (including 1 momentary)
- 2 momentary buttons (rear)
- 1 multifunction rotary knob
- 2 rotary knobs
- 2 side rotary sliders
- 4 digital trims
- Precision Hall sensor gimbals with fully CNC-machined aluminum stick caps
- Trainer mode via cable (3.5 mm port)
- 7-character model names
- Servo reversing
- Endpoint adjustment
- Data reset
- Failsafe speeds
- Speed curve adjustment with exponential or 17-point curves
- Freely programmable mixes
- Logically linked switches
- Simple and intuitive user interface
- Servo monitor
- 2 timers (stopwatch or timer)
- Adjustable screen backlight brightness
- Gimbal calibration
- Sound alerts
- Range check
- 3-receiver mode setting (redundancy)
Technical Specifications
- Transmission system: ACCESS / ACCST 2.4 GHz (FW v2.0.0 and later)
- Antenna: Built-in 2.4 GHz
- Dimensions: 198.5 × 194 × 94.5 mm (W × H × D)
- Weight: 695 g (including battery)
- Operating system: ECOS
- Internal RF module: ISRM-Lite
- Channels: up to 24
- Operating voltage: 6.5–8.4 V (2S Li-ion battery)
- Operating temperature: (-10)–60 °C
- Operating current: 100 mA at 7.4 V
- Operating frequency: 2.4015–2.4820 GHz
- Battery compartment dimensions: 69.5 × 38.5 × 20 mm (W × H × D)
- RF output power: ≤ 15 dBm (E.I.R.P.)
- Charging current: ≤ 1 A ± 200 mA
- USB adapter voltage: 5 V ± 0.2 V
- USB adapter current: ≥ 2.0 A
- Screen: 2.95-inch monochrome LCD with 128 × 64 px resolution
Kit contents:
- KAVAN V10 transmitter
- Transmitter battery: 2S 2600 mAh Li-ion
