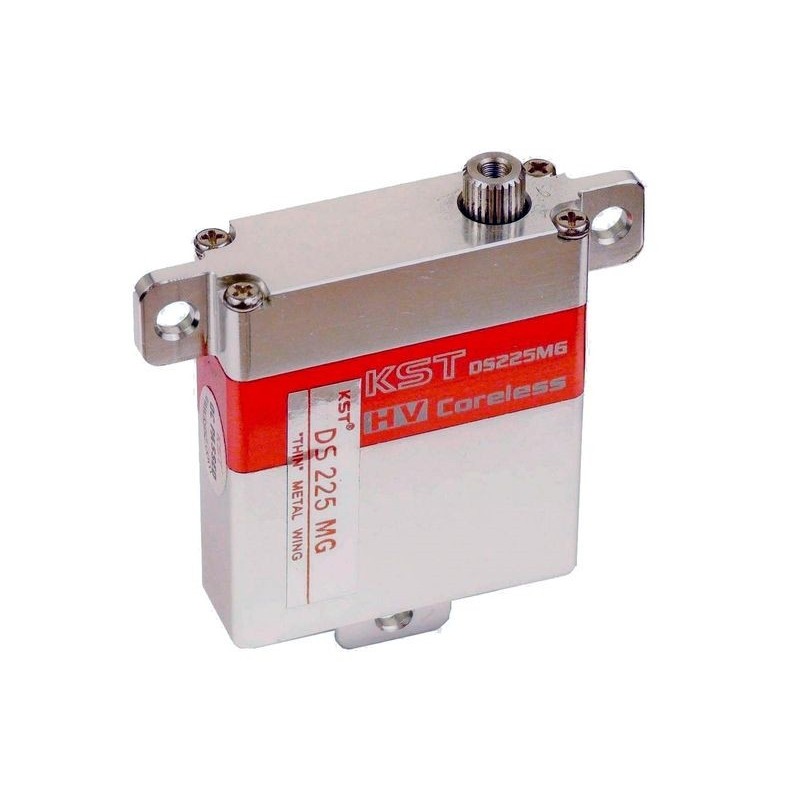

KST DS225MG HV digital wing servo

KST DS225MG HV digital wing servo

153-DS225MG

The KST DS225MG servo is a wing servo (10mm thick) with aluminium housing and metal gears, all with double bearing!
It will be perfect for glider wings. Delivered with 4 servos (1 aluminium and 3 plastic) and fixing screws.

Read more
€36.90
In stock – available immediately

  • Paiement sécurisé Paiement sécurisé
  • Livraison 24/48h Livraison 24/48h
  • Paiement 3X Paiement 3X
Cheaper elsewhere?

Technical specifications

  • Dimensions : 30 mm x 10 mm x 35 mm
  • Torque (6.0v/7.4v) : 4.70 Kg.cm/5.60 Kg.cm
  • Speed (6.0V/7.4V) : 0.12 sec/60° / 0.10 sec/60°.
  • Power supply voltage : 6.0-7.4V
  • Weight : 26g
  • Max. frequency 333Hz
  • Pulse width: 1520us
  • Coreless motor
  • Double bearing
  • Metal gears

153-DS225MG
  • Thickness in mm (Servos) : 10
    320
  • Torque in kg.cm (servos) : 5.6
  • Speed sec / 60° (servos) : 0.1
  • Bearing (servos) : yes
  • Technology (sevos) : Digital
  • HV (servos) : yes
  • Weight in g (servos) : 26
